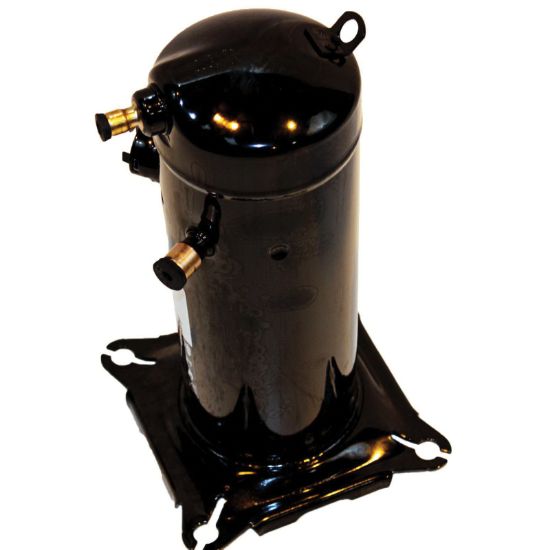

ZP29K5E-PFV-830 COMPRESSOR

ZP29K5E-PFV-830 Hermetic Scroll Compressor, 29000 btu/hr, R-410A, 208/230 VAC at 60Hz, 1 PH, 15.7A

Manufacturer: International Comfort Products

$0.00

Qty:

Hermetic Scroll Compressor, 6.9 in. Length, 8.4 in. Width, 15.3 in. Height, AMP: 15.7A, 29000 btu/hr BTU, Phase: 1 PH, R-410A Refrigerant, 208/230 VAC Volts, 68 - 73dB Decibel Rating, 10.1 - 21.1 EER, 427 - 486 lbs/hr Mass Flow, 1870 - 2870W Power Rating, 3500 RPM, Suction Line Size: 3/4 in., 1/2 in. Liquid Line Size, Locked Rotor AMP: 77A, 7-1/2 x 7-1/2 in. Base, Temperature Rating: 45 - 50F Evaporator, 100 - 130F Condensing, 65 - 70F Return Gas, 115F Liquid, 60Hz Frequency Rating

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	6.9 in.
Width	8.4 in.
Height	15.3 po
AMP	15.7A
Base Size	7-1/2 x 7-1/2 in.
BTU	29000 btu/hr
Decibel Rating	68 - 73dB
EER	10.1 - 21.1
Frequency Rating	60Hz
Locked Rotor AMP	77A
Mass Flow	427 - 486 lbs/hr
Phase	1 PH
Power Rating	1870 - 2870W
Refrigerant	R-410A
RPM	3500 RPM
Temperature Rating	45 - 50F Evaporator, 100 - 130F Condensing, 65 - 70F Return Gas, 115F Liquid
Volts	208/230 VAC
