FASZP54K5EPFV830

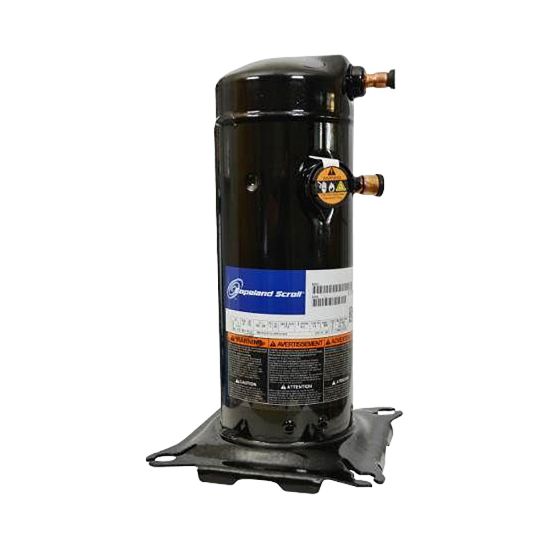

Copeland ZP54K5E-PFV-830 Hermetic Scroll Compressor, 54000 btu/hr, R-410A, 208 - 230 VAC at 60Hz, 1 PH, 22.5A

Manufacturer: International Comfort Products

$0.00

Qty:

Hermetic Scroll Compressor, ZP Series, 9.56 in. Length, 9.56 in. Width, 16.94 in. Height, AMP: 22.5A, 54000 btu/hr BTU, Phase: 1 PH, R-410A Refrigerant, 208 - 230 VAC Volts, 60Hz Frequency Rating, 800 - 910 lbs/hr Mass Flow, Suction Line (OD): 7/8 in., Locked Rotor AMP: 134A, 68 - 73 dBA Decibel Rating, 10.5 - 21.4 EER, Diameter: 6-1/2 in., Liquid Line (OD): 1/2 in., 7-1/2 x 7-1/2 in. Base, 5150W Watts, RPM: 3500 RPM, Temperature Rating: 45 - 50F Evaporator, 100 - 130F Condensing, 65 - 70F Return Gas, 85 - 115F Liquid

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	9.56 in.
Width	9.56 in.
Height	16.94 po
AMP	22.5A
Base Size	7-1/2 x 7-1/2 in.
BTU	54000 btu/hr
Decibel Rating	68 - 73 dBA
Diameter	6-1/2 in.
EER	10.5 - 21.4
Frequency Rating	60Hz
Liquid Line (OD)	1/2 in.
Locked Rotor AMP	134A
Mass Flow	800 - 910 lbs/hr
Phase	1 PH
Refrigerant	R-410A
RPM	3500 RPM
Suction Line (OD)	7/8 in.
Temperature Rating	45 - 50F Evaporator, 100 - 130F Condensing, 65 - 70F Return Gas, 85 - 115F Liquid
Volts	208 - 230 VAC
Watts	5150W
