Picture of 1056-100 1 COUPLING CI PL

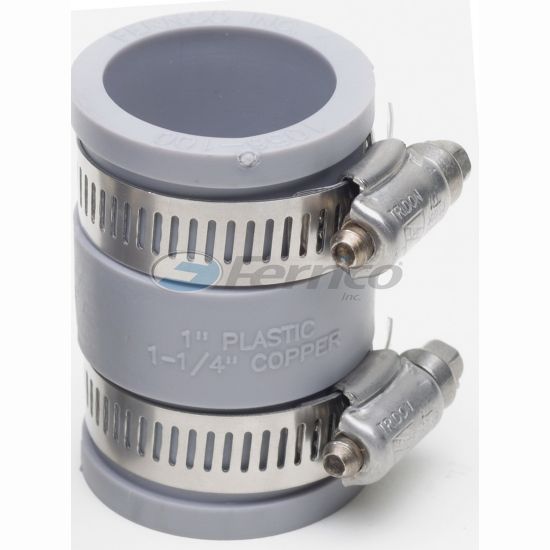

1056-100 1 COUPLING CI PL

Fernco Connectors Ltd. 1056-100 1056 Series 1 in. Flexible PVC Coupling
Manufacturer: Fernco
$0.00
This 1056 series flexible straight coupling with stainless steel clamp is made of polyvinyl chloride/300 stainless steel. It has a 1 inch Schedule 40 PVC or 1-1/4 inch CTS x 4 1 inch Schedule 40 PVC or 1-1/4 inch CTS end connection and measures 2-19/50 inches length x 2-2/5 inches width x 1-3/10 inches diameter. The connector has 2-3/8 inches inside diameter and has a maximum operating pressure of 4.3 PSI, an operating temperature ranging from -30 to 140 degrees Fahrenheit and an installation torque of 60 in-lbs. It meets the CSA B602, ASTM C-1173 and ASTM D-5926 standards.
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection Plastic
End Connection 1 Plastic
End Connection 2 Plastic
Fitting Size 1 1 in.
Fitting Size 2 1 in.
Fitting Sizes 1 in. x 1 in.
Length 2-19/50 in.
Material Plastic
Material Type Flexible PVC
Maximum Temperature 140
Minimum Temperature -30
Pressure - Maximum 4.3 psi
Specifications - ASTM ASTM C-1173;ASTM D-5926
Specifications - CSA Certified CSA B602
Style Name 1056 Series
Temperature Range -30 to 140 Deg F
Width 2-2/5 in.
Product Type Flexible Couplings
