FMBUFA400C10UT

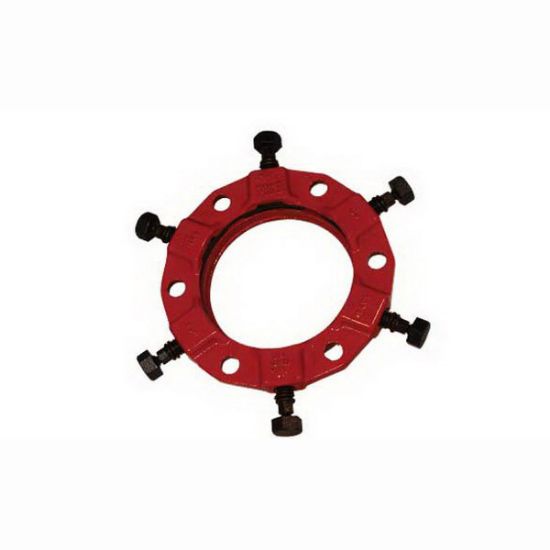

Ford Meter Box Uni-Flange UFA400-C-10-UT Red Ductile Iron Flange Adapter, 10 in.

$0.00

Qty:

Uni-Flange Flange Adapter, 400C Series, 2-3/16 in. Height, Ductile Iron, Fits Pipe Size: 10 in., Pressure - Maximum: 250 psi, 11.1 in. Range, Specifications - ANSI: ANSI B16.1, Specifications - ASTM: ASTM A-536 Grade 65-45-12, Specifications - UL Listed: Yes, Colour/Finish Name: Red, 16 in. Diameter - Outside 1, (12) 1 in. Bolt Hole Diameter, Global Origin, 14-1/4 in. Bolt Circle Diameter

Products specifications

products.specs.attributename	products.specs.attributevalue
Height	2-3/16 in.
Material	Ductile Iron
Bolt Circle Diameter	14-1/4 in.
Bolt Hole Diameter	(12) 1 in.
Colour/Finish Name	Red
Diameter - Outside 1	16 in.
Fits Pipe Size	10 in.
Pressure - Maximum	250 psi
Range	11.1 in.
Specifications - ANSI	ANSI B16.1
Specifications - UL Listed	Yes
