1 SS 1000# THRD 1PC RP BV LL

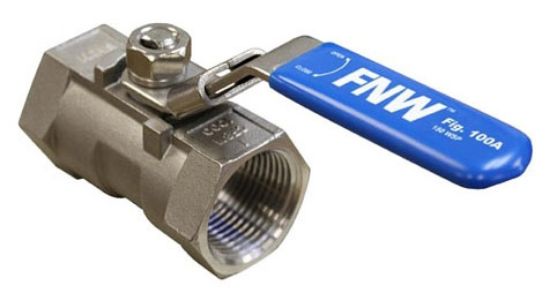

FNW FNW100AG Figure 100A 1 in. Threaded 1000# 1-Piece Stainless Steel Reduced Port Ball Valve with Locking Lever
Manufacturer: FNW
$0.00
1 Stainless Steel 1000# Threaded 1 Piece Reduced Port BV Locking Lever
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection NPT x NPT
End Connection 1 NPT
End Connection 2 NPT
Length 2-81/91 in.
Pressure - Maximum 1000 psi
Pressure Class 1000#
Specifications - ANSI ANSI Z1157-2014e1
Specifications - ASME ASME B1.20.1;ASME B16.34
Specifications - ASTM ASTM A-351
Specifications - IAPMO Listed Yes
Specifications - MSS MSS SP-110
Style Name Figure 100A
Valve Body Style 1 piece
Valve Operator Lever Handle
Valve Port Opening Standard Port
Valve Seat Material RTFE
Valve Size 1 in.
Valve Stem Blowout-Proof
Valve Type Ball Valves
Application Residential
Product Type Ball Valves
Valve Body Material Stainless Steel
Material Stainless Steel
Recommended Valve Application Residential
