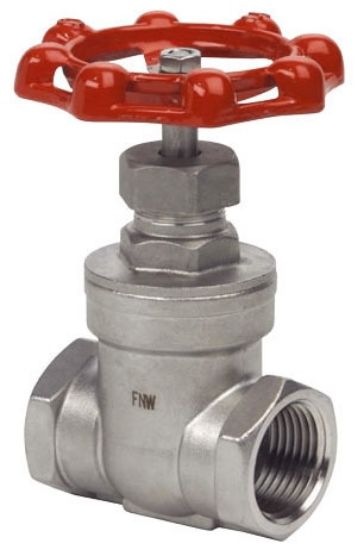

1 SS 200# THRD NRS GATE VLV

FNW FNW15B200G Figure 15B-200 1 in. NPT 200# Stainless Steel Gate Valve
Manufacturer: FNW
$0.00
1 Stainless Steel 200 # Threaded NRS GATE Valve
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection NPT x NPT
End Connection 1 NPT
End Connection 2 NPT
Length 2-29/50 in.
Material Type A351
Pressure Class 200#
Specifications - ANSI ANSI B1.20.1
Specifications - API API 598
Specifications - ASME ASME B16.34
Specifications - ASTM ASTM A-351 Grade CF8M;ASTM B-16.34
Specifications - FM Approved No
Specifications - IAPMO Listed Yes
Specifications - NSF NSF 14 2016
Specifications - NSF Certified Yes
Specifications - UL Listed No
Style Name Figure 15B-200
Valve Disc Material Stainless Steel
Valve Operator Handwheel
Valve Size 1 in.
Valve Stem Non-rising
Valve Type Gate Valves
Weight 1.50 lb
Product Type Gate Valves
Valve Body Material Stainless Steel
Material Stainless Steel
