1/2 SS 2000# THRD 2PC FP ISO BV

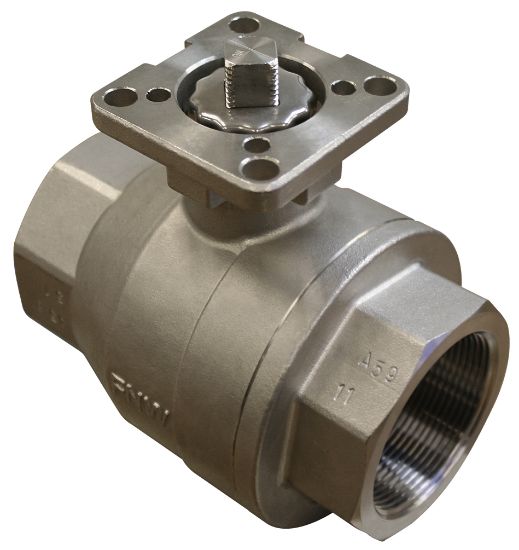

FNW FNW220AMD Figure 220AM 1/2 in. FPT Stainless Steel Full Port 2-Piece 2000# Ball Valve
Manufacturer: FNW
$0.00
Products specifications
products.specs.attributename products.specs.attributevalue
Product Type Ball Valves
End Connection FPT x FPT
End Connection 1 FPT
End Connection 2 FPT
Length 2-19/20 in.
Material Stainless Steel
Pressure - High 2000 psi
Pressure Class 2000#
Recommended Valve Application Steam;Potable Water
Specifications - ANSI ANSI Z1157-2014e1
Specifications - ASME ASME B1.20.1;ASME B16.34
Specifications - ASTM ASTM A-351
Specifications - FM Approved No
Specifications - IAPMO Listed Yes
Specifications - ISO ISO 5211
Specifications - MSS MSS SP-110
Specifications - NSF Certified No
Specifications - UL Listed No
Valve Body Style 2 Piece
Valve Port Opening Full Port
Valve Seat Material PTFE
Valve Size 1/2 in.
Valve Stem Blowout-proof
Valve Type Ball Valves
Valve Body Material Stainless Steel
