NP 3/4 FIP X 3/4 HOSE BRS BV W/ CC

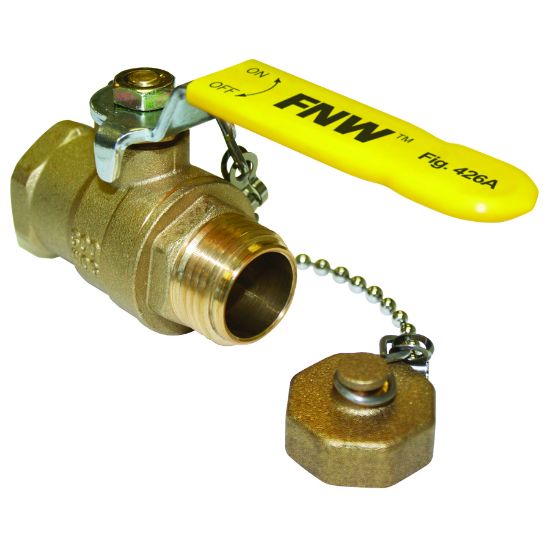

FNW FNW426AFF Figure 426A Lead Free 3/4 in. FPT x GHT Brass Lever Handle Full Port 600# Ball Valve
Manufacturer: FNW
$0.00
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection FPT x GHT
End Connection 1 FPT
End Connection 2 GHT
Lead Law Compliant Yes
Length 3-3/20 in.
Material Brass
Pressure - Maximum 600 psi
Pressure Class 600#
Recommended Valve Application Gas;Oil;Potable Water
Specifications - ANSI ANSI Z1157-2014e1
Specifications - ASTM ASTM A-283;ASTM B-124 C37700;ASTM B-16 C36000;ASTM S-30400
Specifications - IAPMO Listed Yes
Style Name Figure 426A
Valve Body Style 2 piece
Valve Operator Lever Handle
Valve Port Opening Full Port
Valve Seat Material PTFE
Valve Size 3/4 in.
Valve Stem Blowout-proof
Valve Type Ball Valves
Weight 0.92 lb
Product Type Ball Valves
Valve Body Material Brass
Specifications - FM Approved No
Specifications - MSS MSS SP-110
Specifications - NSF Certified No
Specifications - UL Listed No
