2 CI 125# FLG OS&Y GATE VLV

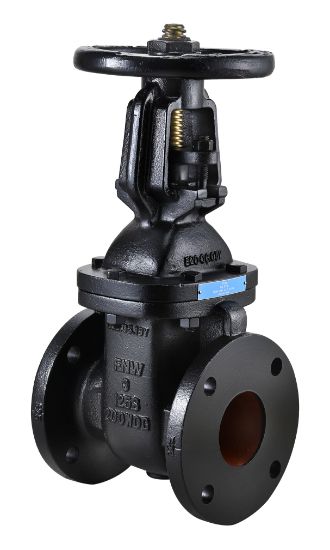

FNW FNW651BK Figure 651A 2 in. Flanged 125# Cast Iron Gate Valve
Manufacturer: FNW
$0.00
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection Flanged x Flanged
End Connection 1 Flanged
End Connection 2 Flanged
Length 7 in.
Pressure - High 125 psi
Pressure - Maximum 200 psi
Pressure Class 125#
Recommended Valve Application Gas;Oil;Steam;Water
Specifications - ANSI ANSI B16.1;ANSI B16.10
Specifications - ASTM ASTM A-126 Class B
Specifications - FM Approved No
Specifications - MSS MSS SP-70
Specifications - UL Listed No
Style Name Figure 651A
Valve Disc Material Wedge
Valve Operator Handwheel
Valve Seat Material Bronze
Valve Size 2 in.
Valve Stem Rising
Weight 36.00 lb
Application Residential
Product Type Gate Valves
Valve Body Material Cast Iron
Material Cast Iron
Valve Type Gate Valves
