3 CI 125# FLG GLOBE VLV

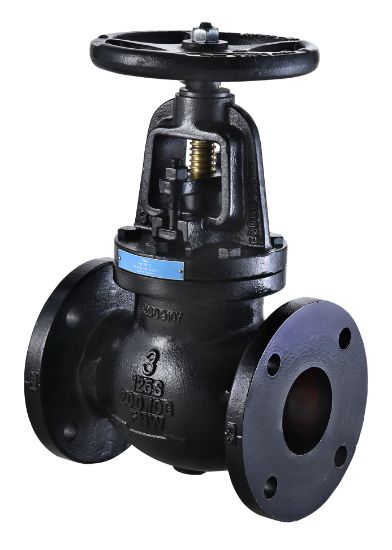

FNW FNW661BM Figure 661 3 in. Flanged 125# Cast Iron Globe Valve
Manufacturer: FNW
$0.00
Products specifications
products.specs.attributename products.specs.attributevalue
End Connection Flanged x Flanged
End Connection 1 Flanged
End Connection 2 Flanged
Length 9-1/2 in.
Maximum Temperature 150
Pressure - High 200 psi
Pressure Class 125#
Recommended Valve Application Gas;Oil;Water
Specifications - ANSI ANSI B16.1;ANSI 14-2016
Specifications - ASTM ASTM A-126
Specifications - FM Approved No
Specifications - IAPMO Listed Yes
Specifications - MSS MSS SP-25
Specifications - NSF NSF 14-2016
Specifications - NSF Certified Yes
Specifications - UL Listed No
Style Name Figure 661
Valve Bonnet Type Bolted
Valve Disc Material Cast Iron
Valve Operator Wheel Handle
Valve Seat Material Bronze
Valve Size 3 in.
Valve Stem Rising
Valve Type Globe Valves
Width 8 in.
Product Type Globe Valves
Valve Body Material Cast Iron
Material Cast Iron
