Picture of C++ LF 10 DI BRZ EPDM 200# LUG BFV GO

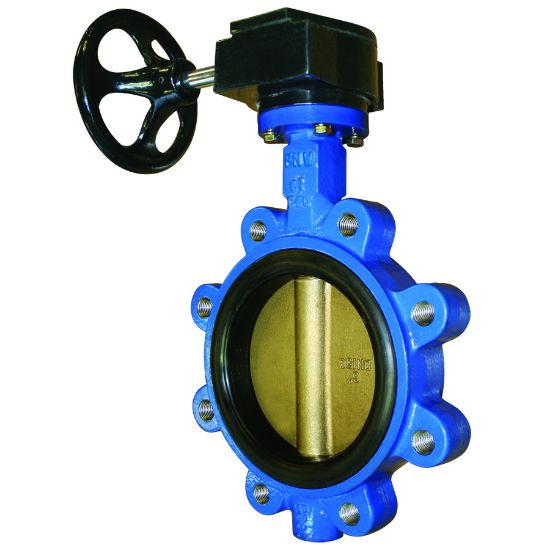

C++ LF 10 DI BRZ EPDM 200# LUG BFV GO

FNW FNW712EG10 712 Series 10 in. Ductile Iron EPDM Gear Operator Handle 200# Butterfly Valve
Manufacturer: FNW
$0.00
Products specifications
products.specs.attributename products.specs.attributevalue
Product Type Butterfly Valves
Coating Epoxy
End Connection Flanged x Flanged
End Connection 1 Flanged
End Connection 2 Flanged
Height 19-8/47 in.
Length 2-17/25 in.
Material Ductile Iron
Maximum Temperature 230
Minimum Temperature -22
Pressure - Maximum 200 psi
Pressure Class 200#
Recommended Valve Application Water
Valve Size 10 in.
Lead Law Compliant Yes
Specifications - ANSI ANSI B16.1;ANSI 61;ANSI 372
Specifications - API API 598;API 609A
Specifications - ASTM ASTM A-536
Specifications - CSA Certified CSA 61
Specifications - FM Approved No
Specifications - ISO ISO 5211
Specifications - MSS MSS SP-61;MSS SP-67
Specifications - NSF NSF 61-G;NSF 372;NSF 61
Specifications - NSF Certified Yes
Specifications - UL Listed No
Style Name 712 Series
Valve Body Style Lug
Valve Disc Material Aluminum Bronze
Valve Operator Gear Operator
Valve Seat Material EPDM
Valve Stem Blowout-proof
Valve Type Butterfly Valves
Lead Law Compliance Level Yes
Valve Body Material Ductile Iron
