C++ LF 16 DI BRZ EPDM 150# LUG BFV G

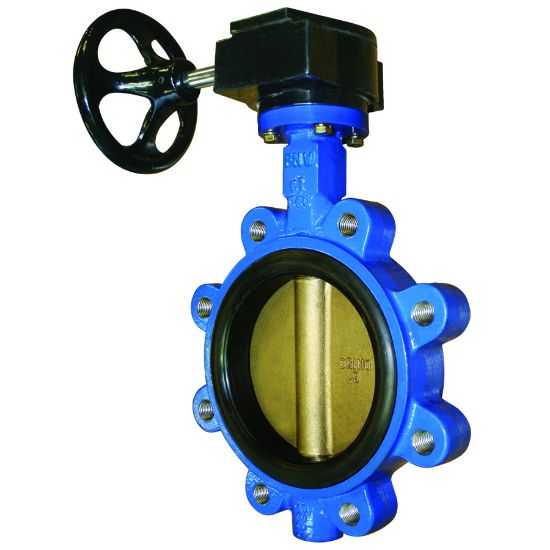

FNW FNW712EG16 712 Series Lead Free 16 in. Ductile Iron EPDM Gear Operator Handle Butterfly Valve
Manufacturer: FNW
$0.00
Products specifications
products.specs.attributename products.specs.attributevalue
Product Type Butterfly Valves
Coating Epoxy
End Connection Flanged x Flanged
End Connection 1 Flanged
End Connection 2 Flanged
Height 28-33/50 in.
Lead Law Compliant Yes
Length 4-1/50 in.
Material Ductile Iron
Maximum Temperature 230
Minimum Temperature -22
Pressure - Maximum 150 psi
Pressure Class 150#
Recommended Valve Application Water
Specifications - ANSI ANSI B16.1;ANSI 61;ANSI 372
Specifications - API API 598;API 609A
Specifications - ASTM ASTM A-536
Specifications - CSA Certified CSA 61
Specifications - FM Approved No
Specifications - ISO ISO 5211
Specifications - MSS MSS SP-61;MSS SP-67
Specifications - NSF NSF 61-G;NSF 372;NSF 61
Specifications - NSF Certified Yes
Specifications - UL Listed No
Style Name 712 Series
Valve Body Style Lug
Valve Disc Material Aluminum Bronze
Valve Operator Gear Operator
Valve Seat Material EPDM
Valve Size 16 in.
Valve Stem Blowout-proof
Valve Type Butterfly Valves
Width 14-23/25 in.
Valve Body Material Ductile Iron
Lead Law Compliance Level Yes
