Picture of C++ LF 8 DI BRZ EPDM 200# LUG BFV GO

C++ LF 8 DI BRZ EPDM 200# LUG BFV GO

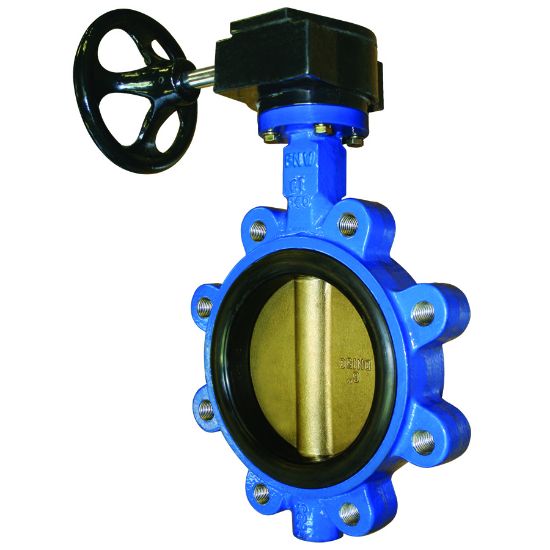

FNW FNW712EGX 712 Series Lead Free8 in. Ductile Iron EPDM Gear Operator Handle Butterfly Valve
Manufacturer: FNW
$0.00
Products specifications
products.specs.attributename products.specs.attributevalue
Brand/Model Compatibility 125/150 lbs Flanges
Coating Epoxy
Colour/Finish Category Bronze Tones
Colour/Finish Name Bronze
End Connection Flanged x Flanged
End Connection 1 Flanged
End Connection 2 Flanged
Height 17-16/25 in.
Lead Law Compliant Yes
Maximum Temperature 230
Minimum Temperature -22
Pressure - Maximum 200 psi
Recommended Valve Application Water
Specifications - ANSI ANSI B16.1;ANSI 61;ANSI 372
Specifications - API API 598;API 609A
Specifications - ASTM ASTM A-536
Specifications - CSA Certified CSA 61
Specifications - ISO ISO 5211
Specifications - MSS MSS SP-61;MSS SP-67
Specifications - NSF NSF 61-G;NSF 372;NSF 61
Specifications - NSF Certified Yes
Style Name 712 Series
Valve Body Style Lug
Valve Disc Material Aluminum Bronze
Valve Operator Gear Operator
Valve Seat Material EPDM
Valve Size 8 in.
Valve Stem Blowout-Proof
Valve Type Butterfly Valves
Product Type Butterfly Valves
Valve Body Material Ductile Iron
Length 2-9/25 in.
Material Ductile Iron
Pressure Class 200#
Specifications - FM Approved No
Specifications - UL Listed No
Lead Law Compliance Level Yes
