Picture of T++ LF 2-1/2 DI BRZ EPDM 200# LUG BFV

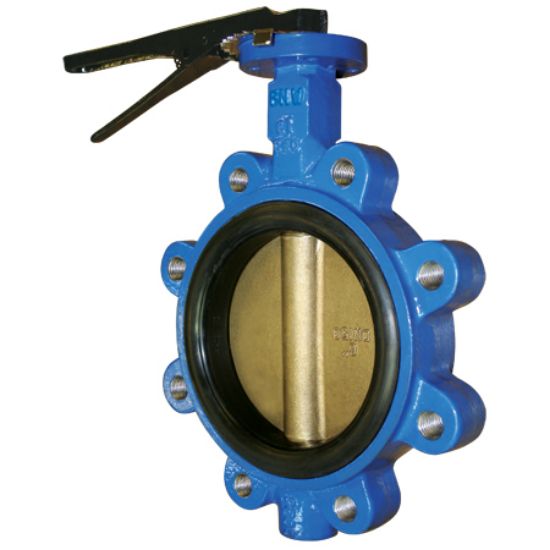

T++ LF 2-1/2 DI BRZ EPDM 200# LUG BFV

FNW FNW712EL 712 Series Lead Free 2-1/2 in. Resilient Seated Lug-Style Butterfly Valve with PDM Seat and Lever Lock Handle
Manufacturer: FNW
$0.00
FNW cartridge style resilient seated butterfly valves are designed to meet the rigorous requirements of industrial applications such as pulp and paper, water purification, power and utilities, chemical/ petrochemical, food and beverage, OEM and HVAC. Each valve is manufactured in accordance with independent standards specifications and is 100 percent tested in both directions of operation to assure bubble-tight service for many years.
Products specifications
products.specs.attributename products.specs.attributevalue
Size 2-1/2 in.
Product Type Butterfly Valves
Coating Epoxy
End Connection Flanged x Flanged
End Connection 1 Flanged
End Connection 2 Flanged
Height 9-64/79 in.
Length 1-64/79 in.
Material Ductile Iron
Maximum Temperature 230
Minimum Temperature -22
Pressure - Maximum 200 psi
Pressure Class 200#
Recommended Valve Application Water
Valve Size 2-1/2 in.
Lead Law Compliant Yes
Specifications - ANSI ANSI B16.1;ANSI 61;ANSI 372
Specifications - API API 598;API 609A
Specifications - ASTM ASTM A-536
Specifications - CSA Certified CSA 61
Specifications - FM Approved No
Specifications - ISO ISO 5211
Specifications - MSS MSS SP-61;MSS SP-67
Specifications - NSF NSF 61-G;NSF 372;NSF 61
Specifications - NSF Certified Yes
Specifications - UL Listed No
Style Name 712 Series
Valve Body Style Lug
Valve Disc Material Aluminum Bronze
Valve Operator Lever Handle
Valve Seat Material EPDM
Valve Stem Blowout-proof
Valve Type Butterfly Valves
Lead Law Compliance Level Yes
Valve Body Material Ductile Iron
