C++HP1LCTGU 6 CL150 LUG FNW HIGH

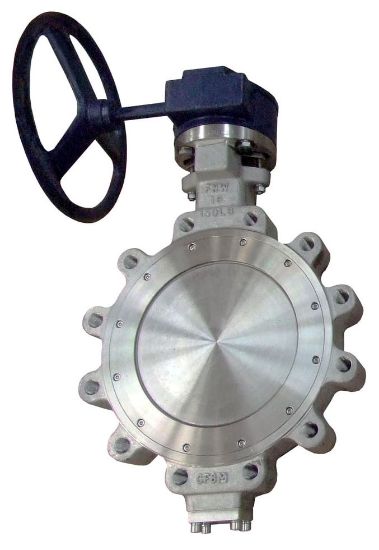

FNW FNWHP1LCTGU HP Series 6 in. Carbon Steel Lug RTFE Gear Operator Handle Butterfly Valve
Manufacturer: FNW
$0.00
Products specifications
products.specs.attributename products.specs.attributevalue
Product Type Butterfly Valves
End Connection Flanged x Flanged
End Connection 1 Flanged
End Connection 2 Flanged
Height 15-3/13 in.
Length 2-6/25 in.
Material Carbon Steel
Maximum Temperature 400
Pressure - Maximum 464 psi
Pressure Class 150#
Recommended Valve Application Water
Specifications - API API 598;API 609
Specifications - ASME ASME B16.34;ASME B16.5
Specifications - ASTM ASTM A-216
Specifications - FM Approved No
Specifications - ISO ISO 5211;ISO 9001
Specifications - NSF Certified No
Specifications - UL Listed No
Style Name HP Series
Valve Body Style Lug
Valve Disc Material Stainless Steel
Valve Operator Gear Operator
Valve Seat Material RTFE
Valve Size 6 in.
Valve Type Butterfly Valves
Width 9-1/2 in.
Valve Body Material Carbon Steel
