HPA1WSTGU 6" CL150 WAFER FNW HIGH

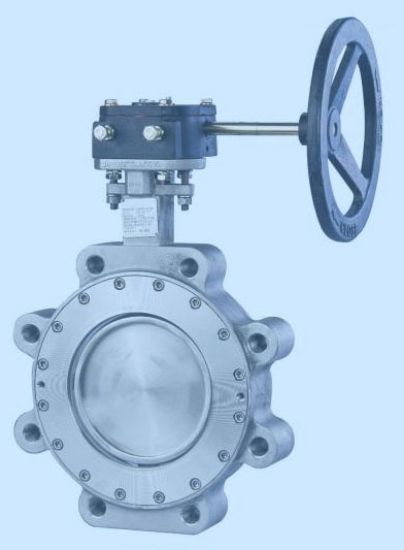

FNW FNWHPA1WSTGU HP Series 6 in. Flanged x Flanged Stainless Steel 25% Glass Filled RTFE Seat Gear Operator Handle 150# Wafer High Performance Butterfly Valve
Manufacturer: FNW
$0.00
Products specifications
products.specs.attributename products.specs.attributevalue
Size 6 in.
Product Type Butterfly Valves
End Connection Flanged x Flanged
End Connection 1 Flanged
End Connection 2 Flanged
Height 15-23/100 in.
Length 2-1/4 in.
Maximum Temperature 500
Minimum Temperature -20
Pressure - High 285 psi
Pressure - Maximum 435 psi
Pressure Class 150#
Recommended Valve Application Water
Specifications - API API 598;API 609
Specifications - ASME ASME B16.34;ASME B16.5
Specifications - ASTM ASTM A-351
Specifications - FM Approved No
Specifications - IAPMO Listed No
Specifications - ISO ISO 5211;ISO 9001
Specifications - MSS MSS SP-67
Specifications - NSF Certified No
Specifications - UL Listed No
Style Name HP Series
Valve Body Style Wafer
Valve Disc Material Stainless Steel
Valve Operator Gear Operator
Valve Seat Material RPTFE
Valve Size 6 in.
Valve Type Butterfly Valves
Weight 59.00 lb
Valve Body Material Stainless Steel
