Picture of C++HPA1WSTLU 6 CL150 WAFER FNW

C++HPA1WSTLU 6 CL150 WAFER FNW

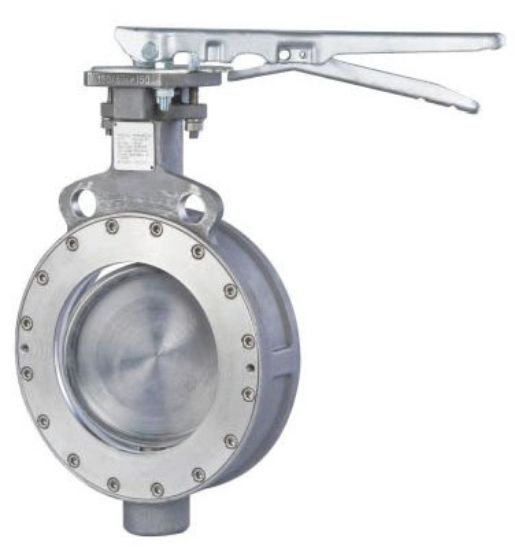

FNW FNWHPA1WSTLU Figure HPA 6 in. Stainless Steel Wafer MRTFE Lever Handle Butterfly Valve
Manufacturer: FNW
$0.00
Products specifications
products.specs.attributename products.specs.attributevalue
Product Type Butterfly Valves
End Connection Wafer x Wafer
End Connection 1 Wafer
End Connection 2 Wafer
Height 8-7/100 in.
Length 8-1/2 in.
Material Stainless Steel
Material Type MRTFE;316
Maximum Temperature 500
Minimum Temperature -58
Pressure - High 285 psi
Pressure Class 150#
Recommended Valve Application Water
Specifications - ANSI ANSI B16.34;ANSI B16.5
Specifications - API API 598;API 609
Specifications - ASME ASME B16.34;ASME B16.5;ASME Class 150
Specifications - ASTM ASTM A-216 Grade WCB;ASTM A-351 Grade CF8M;ASTM A-479 Type 316
Specifications - FM Approved No
Specifications - IAPMO Listed No
Specifications - ISO ISO 5210;ISO 5211;ISO 9001;ISO 15848-1
Specifications - NSF NSF 61
Specifications - NSF Certified Yes
Specifications - UL Listed No
Style Name Figure HPA
Valve Body Style Wafer
Valve Disc Material Stainless Steel
Valve Operator Lever Handle
Valve Port Opening Standard Port
Valve Seat Material MRTFE
Valve Size 6 in.
Valve Stem Blowout-proof
Valve Type Butterfly Valves
Weight 30.90 lb
Width 8-1/2 in.
Valve Body Material Stainless Steel
