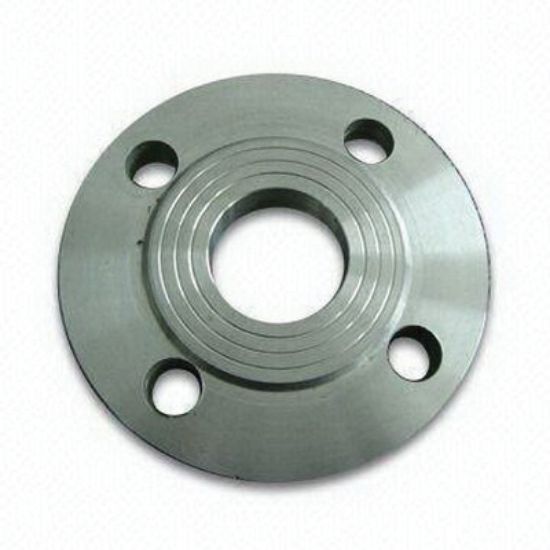

Picture of 1" CL150 RF SO FLG A105N

1" CL150 RF SO FLG A105N

1" 150# A105 Raised Face Slip-on Flange Forged Steel

$0.00

Qty:

Products specifications

products.specs.attributename	products.specs.attributevalue
Material	Forged Steel
Bolt Circle Diameter	3.12 in.
Bolt Hole Diameter	0.62 in.
Bore Size	1.36 in.
Face Type	Raised
Fitting Size 1	1 in.
Flange Outside Diameter	4.88 in.
Flange Thickness	0.69 in.
Hub Diameter	1.94 in.
Length Through Hub	1.06 in.
Number of Bolts	4
Pressure Class	150#
Raised Face Diameter	2 in.
Specifications - ASME	ASME B16.5
