009H 2 COUPLING E GASK PNT

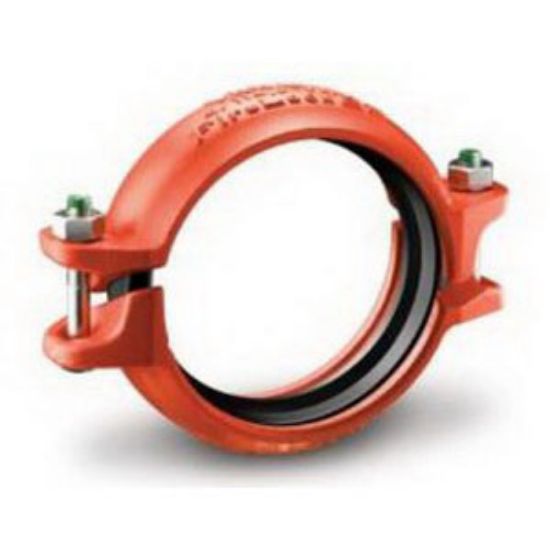

Victaulic 009N 2 in., FireLock EZ Ridgid Coupling Grooved

Manufacturer: Victaulic

$0.00

Qty:

FireLock EZ Preassembled Rigid Coupling with Grade E Gasket, Model: 009H, 5.53 in. Length, 1.93 in. Width, Ductile Iron, Coating: Orange Enamel, End Connection 1: Grooved, End Connection 2: Grooved, Fitting Size 1: 2 in., Fitting Size 2: 2 in., Pressure - Maximum: 365 psi, Specifications - ASTM: ASTM A-536 Grade 65-45-12, ASTM A-449, ASTM A-183, Other Physical Dimensions: 0.12 in. Allowable Pipe End Separation, (2) 3/8 x 2 in. Bolt/Nut, 3.79 in. Body Outside Diameter, Diameter - Outside 1: 2-3/8 in., 1616 lbs. Maximum End Load, Global Origin

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	5.53 in.
Width	1.93 in.
Material	Ductile Iron
Coating	Orange Enamel
Diameter - Outside 1	2-3/8 in.
End Connection 1	Grooved
End Connection 2	Grooved
End Load	1616 lbs. Maximum
Fitting Size 1	2 in.
Fitting Size 2	2 in.
Pressure - Maximum	365 psi
