S++ FVIC009G4

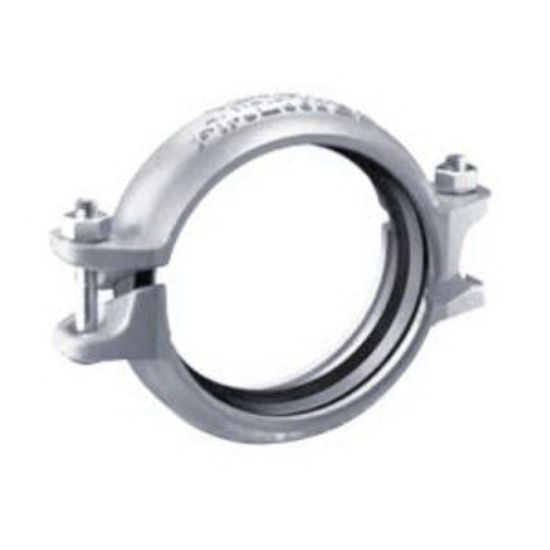

Victaulic Style 009N FireLock Coupling 4 in., Galvanized, E Type A Vic-Plus, Oval Neck Track B/N - Plated

Manufacturer: Victaulic

$0.00

Qty:

FireLock EZ Pre-Assembled Rigid Coupling with Grade E Gasket, Model: 009N, 7.88 in. Length, 2.13 in. Width, Ductile Iron, Coating: Hot Dipped Galvanized, End Connection 1: Grooved, End Connection 2: Grooved, Fitting Size 1: 4 in., Fitting Size 2: 4 in., Pressure - Maximum: 365 psi, Specifications - ASTM: ASTM A-536 Grade 65-45-12, ASTM A-449, ASTM B-633, Other Physical Dimensions: (2) 3/8 x 2-1/2 in. Bolt/Nut, 0.17 in. Allowable Pipe End Separation, 6 in. Body Outside Diameter, 4-1/2 in. Diameter - Outside 1, 5805 lbs. Maximum End Load, Global Origin

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	7.88 in.
Width	2.13 in.
Material	Ductile Iron
Coating	Hot Dipped Galvanized
End Connection 1	Grooved
End Connection 2	Grooved
End Load	5805 lbs. Maximum
Fitting Size 1	4 in.
Pressure - Maximum	365 psi
