741 4 FLANGE ADAPTER E GASK BLK

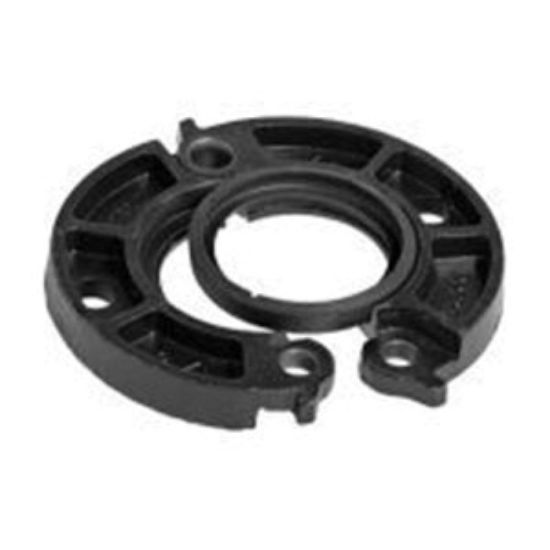

Vic-Flange 741 Black Enamel Ductile Iron Hinged Flange Adapter with Grade E Gasket, 4 in., 9 in. Flange OD

Manufacturer: Victaulic

$0.00

Qty:

Vic-Flange Hinged Flange Adapter with Grade E Gasket, Model: 741, Ductile Iron, Coating: Black Enamel, Fitting Size 1: 4 in., Specifications - ASTM: ASTM A-536 Grade 65-45-12, ASTM A-449, ASTM A-183, Pressure - Maximum: 300 psi, Other Physical Dimensions: 3 in. Bolt Length, 4-1/2 - 5.53 in. Sealing Surface, 4770 lbs. Maximum End Load, 9 in. Flange Outside Diameter, 0.94 in. Flange Thickness, 7-1/2 in. Bolt Circle Diameter, Number of Bolts: 8, 5/8 in. Bolt Hole Diameter, Global Origin

Products specifications

products.specs.attributename	products.specs.attributevalue
Material	Ductile Iron
Bolt Circle Diameter	7-1/2 in.
Bolt Hole Diameter	5/8 in.
Coating	Black Enamel
End Load	4770 lbs. Maximum
Fitting Size 1	4 in.
Flange Outside Diameter	9 in.
Flange Thickness	0.94 in.
Number of Bolts	8
Pressure - Maximum	300 psi
