743 4 FLANGE ADAPTER E GASK PNT

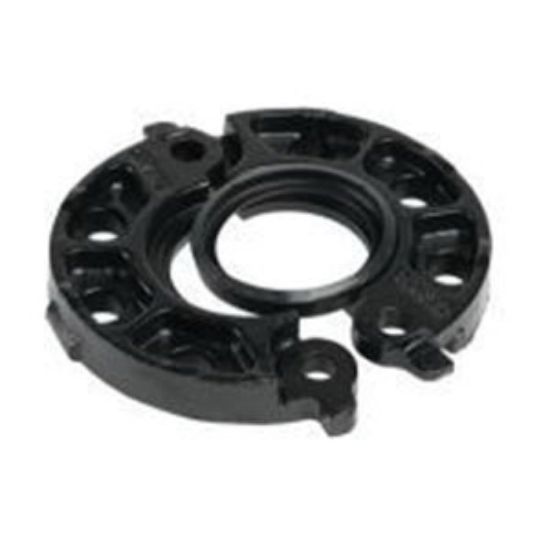

Victaulic 743 4 in., Vic-Flange Adapter Grooved

Manufacturer: Victaulic

$0.00

Qty:

Vic-Flange Flange Adapter with Grade E Gasket, Model: 743, Ductile Iron, Coating: Black Enamel, Fitting Size 1: 4 in., Specifications - ASTM: ASTM A-536 Grade 65-45-12, Pressure - Maximum: 720 psi, Other Physical Dimensions: 3-3/4 in. Bolt Length, 4-1/2 - 5.53 in. Sealing Surface, 11445 lbs. Maximum End Load, Global Origin, 10 in. Flange Outside Diameter, 1.31 in. Flange Thickness, 4-1/2 in. Nominal Bore, 7.87 in. Bolt Circle Diameter, Number of Bolts: 8, 3/4 in. Bolt Hole Diameter

Products specifications

products.specs.attributename	products.specs.attributevalue
Material	Ductile Iron
Bolt Circle Diameter	7.87 in.
Bolt Hole Diameter	3/4 in.
Coating	Black Enamel
End Load	11445 lbs. Maximum
Fitting Size 1	4 in.
Flange Outside Diameter	10 in.
Flange Thickness	1.31 in.
Nominal Bore Size	4-1/2 in.
Number of Bolts	8
Pressure - Maximum	720 psi
