75 1-1/2 COUPLING E GASK PNT

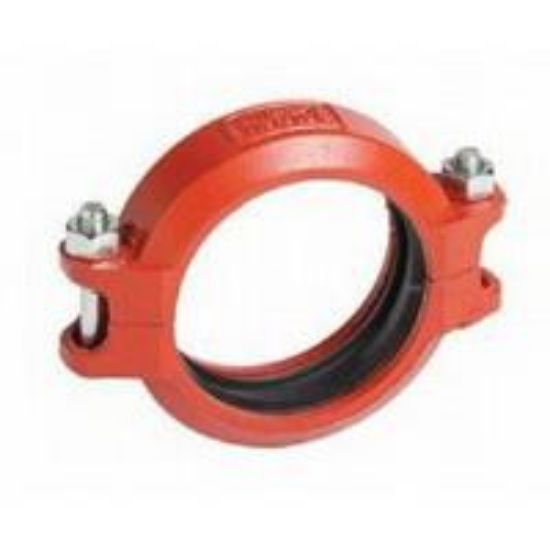

Victaulic 75 1-1/2 in., Flexible Coupling Grooved

Manufacturer: Victaulic

$0.00

Qty:

Flexible Coupling with Grade E Gasket, Model: 75, 4.82 in. Length, 1.77 in. Width, Ductile Iron, Coating: Orange Enamel, End Connection 1: Grooved, End Connection 2: Grooved, Fitting Size 1: 1-1/2 in., Fitting Size 2: 1-1/2 in., Pressure - Maximum: 500 psi, Specifications - ASTM: ASTM A-536 Grade 65-45-12, ASTM A-449, ASTM A-183, Other Physical Dimensions: (2) 3/8 x 2 in. Bolt/Nut, 0 - 0.06 in. Allowable Pipe End Separation, 2.91 in. Body Outside Diameter, Diameter - Outside 1: 1.9 in., 1420 lbs. Maximum End Load, Global Origin

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	4.82 in.
Width	1.77 in.
Material	Ductile Iron
Coating	Orange Enamel
Diameter - Outside 1	1.9 in.
End Connection 1	Grooved
End Connection 2	Grooved
End Load	1420 lbs. Maximum
Fitting Size 1	1-1/2 in.
Fitting Size 2	1-1/2 in.
Pressure - Maximum	500 psi
