77 6 COUPLING E GASK PNT

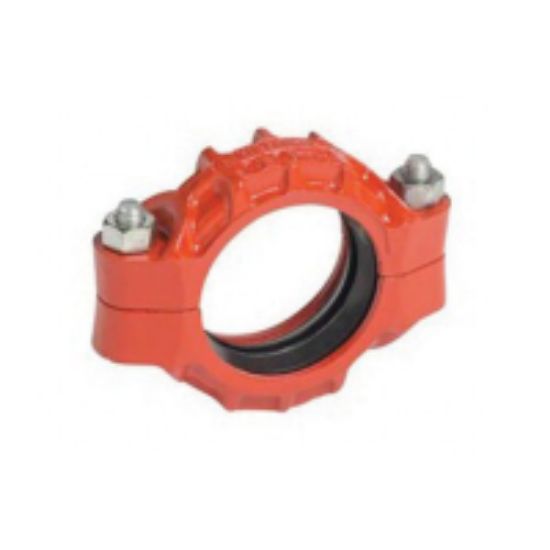

Victaulic Style 77 Flexible Coupling 6 in., Painted, E-EPDM, Oval Neck Track B/N - Plated

Manufacturer: Victaulic

$0.00

Qty:

Standard Flexible Coupling with Grade E Gasket, Model: 77, 11.88 in. Length, 2.13 in. Width, Ductile Iron, Coating: Orange Enamel, End Connection 1: Grooved, End Connection 2: Grooved, Fitting Size 1: 6 in., Fitting Size 2: 6 in., Pressure - Maximum: 1000 psi, Specifications - ASTM: ASTM A-536 Grade 65-45-12, ASTM A-449, ASTM A-183, Other Physical Dimensions: (2) 3/4 x 4-1/4 in. Bolt/Nut, 0.13 in. Allowable Pipe End Separation, 8.63 in. Body Outside Diameter, 6-5/8 in. Diameter - Outside 1, 34470 lbs. Maximum End Load, Global Origin

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	11.88 in.
Width	2.13 in.
Material	Ductile Iron
Coating	Orange Enamel
End Connection 1	Grooved
End Connection 2	Grooved
End Load	34470 lbs. Maximum
Fitting Size 1	6 in.
Pressure - Maximum	1000 psi
