920N 4X1 FNPT MEC-T OLET E GASK GLV

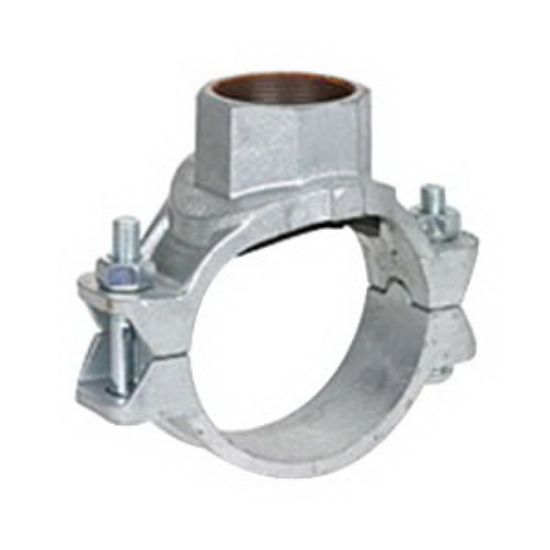

Victaulic Style 920/920N Mechanical-T Outlets 4 x 1 in., Galvanized, E-EPDM, Female Thread Outlet, Oval Neck Track B/N - Plated
Manufacturer: Victaulic
$0.00
Mechanical-T Bolted Branch Outlet with Grade E Gasket, Model: 920N, 7.01 in. Length, 2-3/4 in. Width, Ductile Iron, Coating: Hot-Dipped Galvanized, End Connection 1: FNPT, End Connection 2: FNPT, End Connection 3: FNPT, Fitting Size 1: 4 in., Fitting Size 2: 4 in., Fitting Size 3: 1 in., Specifications - ASTM: ASTM A-536 Grade 65-45-12, ASTM A-449, ASTM A-183, Pressure - Maximum: 500 psi, Other Physical Dimensions: 1-1/2 in. Hole Diameter, 2.88 in. Centre of Run to Engaged Pipe End, 3.56 in. Centre of Run to End of Fitting, Global Origin
Products specifications
products.specs.attributename products.specs.attributevalue
Length 7.01 in.
Width 2-3/4 in.
Material Ductile Iron
Coating Hot-Dipped Galvanized
End Connection 1 FNPT
End Connection 2 FNPT
End Connection 3 FNPT
Fitting Size 1 4 in. x 1 in.
Fitting Size 3 1 in.
Pressure - Maximum 500 psi
