V2703 286 BRS 1/2 UPRT 5.6K STD

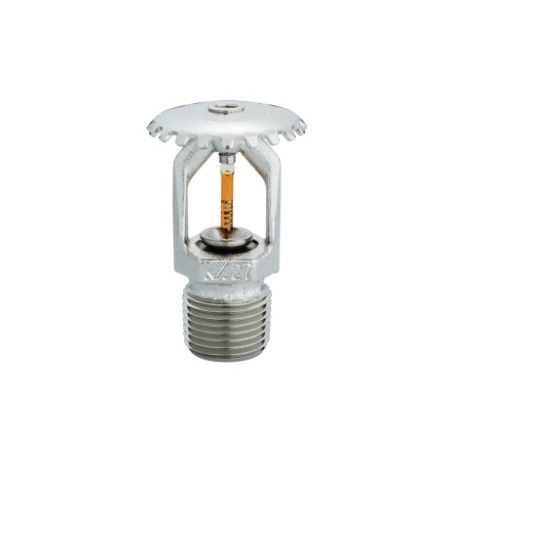

Victaulic V2703 K5.6 FireLock Standard Response Upright Sprinkler 286 Degree F Brass

Manufacturer: Victaulic

$0.00

Qty:

FireLock Standard Spray Sprinkler Head, Model: V2704, 2-3/8 in. Height, Die-Cast Brass 65-30 Frame, Colour/Finish Name: Brass, End Connection 1: MNPT, Fitting Size 1: 1/2 in., 5.6 K-Factor, 200F Maximum - Temperature, Pressure - Maximum: FM: 175 psi, UL: 250 psi, Specifications - FM Approved: Yes, Specifications - UL Listed: Yes, 5 psi Working Pressure, 100% at 500 psi Factory Hydrostatic Test, 150F Ambient Temperature Rating, Deflector: UNS C11000 Material Specification, All Hazard, V27 Open End Wrench, 1/2 in. Orifice Size, Upright Deflector Type, 1-7/16 in. Diameter Deflector Size, Quick Response Type, 3mm Green Bulb Element, Glass with Glycerin Solution Bulb Material, Bronze Deflector Material, Global Origin

Products specifications

products.specs.attributename	products.specs.attributevalue
Wrench	V27 Open End
Working Pressure	5 psi
Response Type	Standard
Material Specification	Deflector: UNS C11000
Factory Hydrostatic Test	100% at 500 psi
Maximum Temperature	286F
K-Factor	5.6
Hazard	All
Deflector Material	Bronze
Element	5mm Blue Bulb
Deflector Type	Upright
Deflector Size	1-7/16 in. Diameter
Ambient Temperature Rating	225F
Bulb Material	Glass with Glycerin Solution
Specifications - FM Approved	Yes
Orifice Size	1/2 in.
Colour/Finish Name	Brass
Specifications - UL Listed	Yes
Height	2-3/8 in.
Material	Die-Cast Brass 65-30 Frame
Pressure - Maximum	FM: 175 psi, UL: 250 psi
End Connection 1	MNPT
Fitting Size 1	1/2 in.
