V2704 155 BRS 1/2 UPRT K5.6 QR

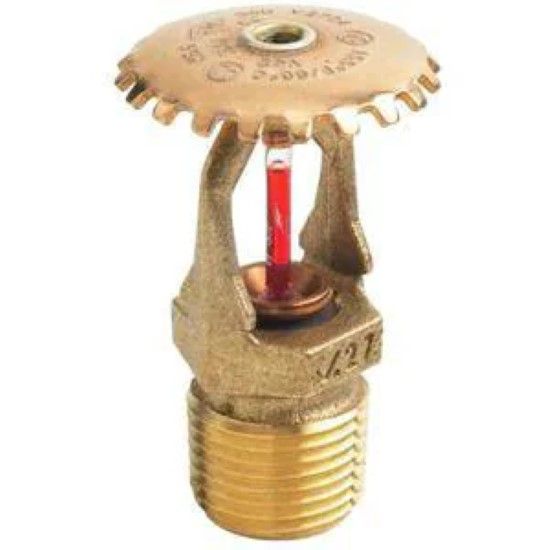

Victaulic V2704 K5.6 FireLock Quick Response Upright Sprinkler 155 Degree F Brass

Manufacturer: Victaulic

$0.00

Qty:

FireLock Standard Spray Sprinkler Head, Model: V2704, 2-3/8 in. Height, Die-Cast Brass 65-30 Frame, Colour/Finish Name: Brass, End Connection 1: MNPT, Fitting Size 1: 1/2 in., 5.6 K-Factor, Maximum Temperature: 200F, Pressure - Maximum: FM: 175 psi, UL: 250 psi, Specifications - FM Approved: Yes, Specifications - UL Listed: Yes, 5 psi Working Pressure, Factory Hydrostatic Test: 100% at 500 psi, 150F Ambient Temperature, Global Origin, Material Specification: Deflector: UNS C11000, Hazard: All, V27 Open End Wrench, 1/2 in. Orifice Size, Upright Deflector, Deflector Size: 1-7/16 in. Diameter, Quick Response, 3mm Green Bulb Element, Glass with Glycerin Solution Bulb, Bronze Deflector

Products specifications

products.specs.attributename	products.specs.attributevalue
Wrench	V27 Open End
Working Pressure	5 psi
Response Type	Quick
Material Specification	Deflector: UNS C11000
Factory Hydrostatic Test	100% at 500 psi
Maximum Temperature	155F
K-Factor	5.6
Hazard	All
Deflector Material	Bronze
Element	3mm Red Bulb
Deflector Type	Upright
Deflector Size	1-7/16 in. Diameter
Ambient Temperature Rating	100F
Bulb Material	Glass with Glycerin Solution
Specifications - FM Approved	Yes
Orifice Size	1/2 in.
Colour/Finish Name	Brass
Specifications - UL Listed	Yes
Height	2-3/8 in.
Material	Die-Cast Brass 65-30 Frame
Pressure - Maximum	FM: 175 psi, UL: 250 psi
End Connection 1	MNPT
Fitting Size 1	1/2 in.
