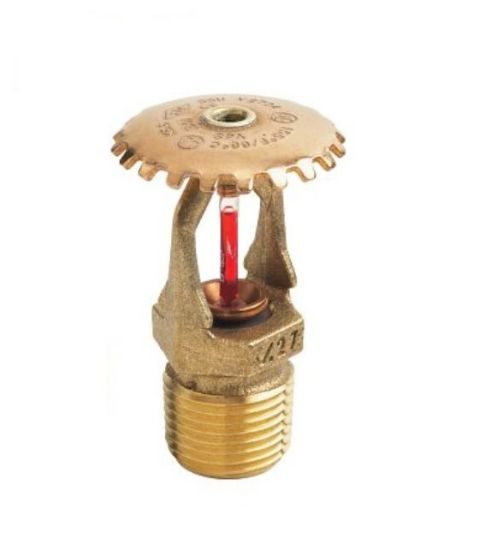

Picture of V2704 286 CHR 1/2 UPRT K5.6 QR

V2704 286 CHR 1/2 UPRT K5.6 QR

Victaulic S271AJQ420 FireLock Model V2704 1/2 in. MNPT 286 Deg F 5.6 K-Factor Quick Response Upright Deflector Sprinkler Head, Chrome
Manufacturer: Victaulic
$0.00
FireLock Standard Spray Sprinkler Head, Model: V2707, 2-3/8 in. Height, Die-Cast Brass 65-30 Frame, Colour/Finish Name: Brass, End Connection 1: MNPT, Fitting Size 1: 1/2 in., 5.6 K-Factor, Maximum Temperature: 200F, Pressure - Maximum: FM: 175 psi, UL: 250 psi, Specifications - FM Approved: Yes, Specifications - UL Listed: Yes, 7 psi Working Pressure, Factory Hydrostatic Test: 100% at 500 psi, 150F Ambient Temperature, Global Origin, Material Specification: Deflector: UNS C51000, Hazard: All, V27-2 Recessed, V27 Open End Wrench, 1/2 in. Orifice Size, Pendent Deflector, Standard Response, 5mm Green Bulb Element, Glass with Glycerin Solution Bulb, Bronze Deflector
Products specifications
products.specs.attributename products.specs.attributevalue
Colour/Finish Category Chromes
Colour/Finish Name Chrome
End Connection MNPT
End Connection 1 MNPT
Fitting Size 1 1/2 in.
Height 2-1/2 in.
Material Nickel;Brass;Bronze;Ductile Iron;Stainless Steel;Plastic
Maximum Temperature 286
Pressure - Maximum 500 psi
Specifications - FM Approved Yes
Specifications - UL Listed Yes
Product Type Sprinkler Heads
Coating Painted
Fitting Sizes 1/2 in.
Length 1-11/25 in.
Material Type Beryllium;CPVC;PVC
Style Name FireLock Model V2704
Weight 0.17 lb
Width 1-11/25 in.
Application Commercial
Origin Domestic
K-Factor 5.6
