V2708 200 BRS 1/2 PEND K5.6 QR

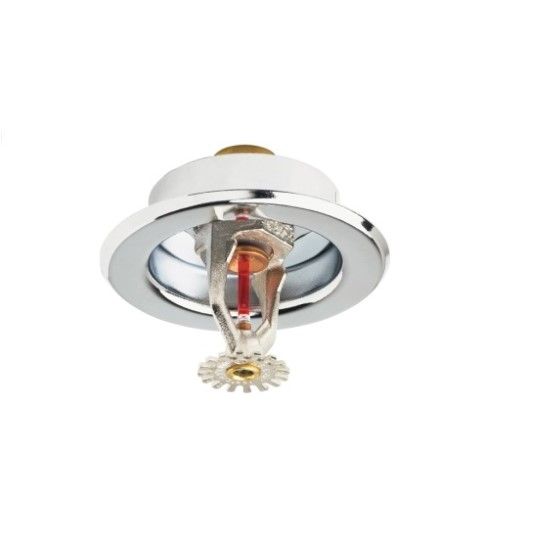

Victaulic V2708 K5.6 FireLock Quick Response Pendent Sprinkler 200 Degree F Brass

Manufacturer: Victaulic

$0.00

Qty:

FireLock Standard Spray Sprinkler Head, Model: V2708, 2-3/8 in. Height, Die-Cast Brass 65-30 Frame, Colour/Finish Name: Chrome-Plated, End Connection 1: MNPT, Fitting Size 1: 1/2 in., 5.6 K-Factor, 200F Maximum - Temperature, Pressure - Maximum: FM: 175 psi, UL: 250 psi, Specifications - FM Approved: Yes, Specifications - UL Listed: Yes, 7 psi Working Pressure, 100% at 500 psi Factory Hydrostatic Test, 150F Ambient Temperature Rating, Deflector: UNS C51000 Material Specification, All Hazard, V27-2 Recessed, V27 Open End Wrench, 1/2 in. Orifice Size, Pendent Deflector Type, Quick Response Type, 3mm Green Bulb Element, Glass with Glycerin Solution Bulb Material, Bronze Deflector Material, Global Origin

Products specifications

products.specs.attributename	products.specs.attributevalue
Wrench	V27-2 Recessed, V27 Open End
Working Pressure	7 psi
Response Type	Quick
Material Specification	Deflector: UNS C51000
Factory Hydrostatic Test	100% at 500 psi
Maximum Temperature	200F
K-Factor	5.6
Hazard	All
Deflector Material	Bronze
Element	3mm Green Bulb
Deflector Type	Pendent
Ambient Temperature Rating	150F
Bulb Material	Glass with Glycerin Solution
Specifications - FM Approved	Yes
Orifice Size	1/2 in.
Colour/Finish Name	Brass
Specifications - UL Listed	Yes
Height	2-3/8 in.
Material	Die-Cast Brass 65-30 Frame
Pressure - Maximum	FM: 175 psi, UL: 250 psi
End Connection 1	MNPT
Fitting Size 1	1/2 in.
