V2710 286 WHI 1/2 HSW K5.6 QR

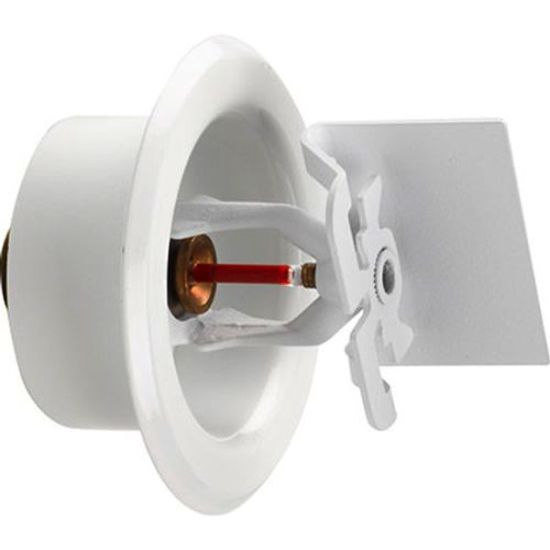

Victaulic K5.6 V2710 Quick Response Horizontal Sidewall Sprinkler 286 Degree F / 141 Degree C, White RAL9010

Manufacturer: Victaulic

$0.00

Qty:

FireLock Standard Spray Sprinkler Head, Model: V3401, 2-1/2 in. Height, Die-Cast Brass 65-30 Frame, Colour/Finish Name: Brass, End Connection 1: MNPT, Fitting Size 1: 3/4 in., 8 K-Factor, Maximum Temperature: 155F, Pressure - Maximum: 175 psi, Specifications - FM Approved: Yes, Specifications - UL Listed: Yes, 5 psi Working Pressure, Factory Hydrostatic Test: 100% at 500 psi, 100F Ambient Temperature, Global Origin, Material Specification: Deflector: UNS C11000, Hazard: All, V34 Open End Wrench, 17/32 in. Orifice Size, Upright Deflector, Deflector Size: 1-7/16 in. Diameter, Standard Response, 5mm Red Bulb Element, Glass with Glycerin Solution Bulb, Bronze Deflector

Products specifications

products.specs.attributename	products.specs.attributevalue
Wrench	V27-2 Recessed, V27 Open End
Working Pressure	7 psi
Response Type	Quick
Material Specification	Deflector: UNS C22000
Factory Hydrostatic Test	100% at 500 psi
Maximum Temperature	286F
K-Factor	5.6
Hazard	All
Deflector Material	Bronze
Element	3mm Blue Bulb
Deflector Type	Horizontal Sidewall
Deflector Size	1-1/4 in. Width
Ambient Temperature Rating	225F
Bulb Material	Glass with Glycerin Solution
Specifications - FM Approved	Yes
Orifice Size	1/2 in.
Colour/Finish Name	White Painted
Specifications - UL Listed	Yes
Height	3 in.
Material	Die-Cast Brass 65-30 Frame
Pressure - Maximum	FM: 175 psi, UL: 250 psi
End Connection 1	MNPT
Fitting Size 1	1/2 in.
