V2740 175 WHI 1/2 RES PEND K4.9 QR

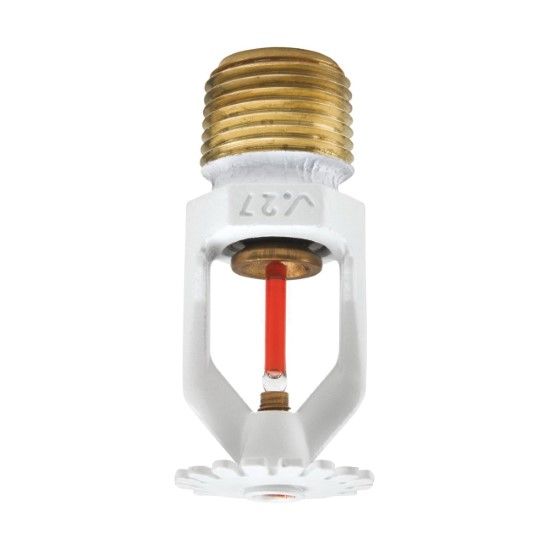

Victaulic V2740 K4.9 FireLock Quick Response Low Flow Pendent 175 Degree F White

Manufacturer: Victaulic

$0.00

Qty:

FireLock Residential Spray Sprinkler Head, Model: V2740, 2-3/8 in. Height, Die-Cast Brass 65-30 Frame, Colour/Finish Name: WhPainted, End Connection 1: MNPT, Fitting Size 1: 1/2 in., 4.9 K-Factor, Maximum Temperature: 175F, Pressure - Maximum: 175 psi, Specifications - UL Listed: Yes, 7 psi Working Pressure, Factory Hydrostatic Test: 100% at 500 psi, 150F Ambient Temperature, Global Origin, Material Specification: Deflector: UNS C51000, Hazard: Residential, V27-2 Recessed, V27 Open End Wrench, 7/16 in. Orifice Size, Pendent Deflector, Deflector Size: 1-1/16 in. Diameter, 20 sq-ft Coverage Area, Quick Response, 3mm Yellow Bulb Element, Glass with Glycerin Solution Bulb, Bronze Deflector

Products specifications

products.specs.attributename	products.specs.attributevalue
Coverage Area	20 sq-ft
Wrench	V27-2 Recessed, V27 Open End
Working Pressure	7 psi
Response Type	Quick
Material Specification	Deflector: UNS C51000
Factory Hydrostatic Test	100% at 500 psi
Maximum Temperature	175F
K-Factor	4.9
Hazard	Residential
Deflector Material	Bronze
Element	3mm Yellow Bulb
Deflector Type	Pendent
Deflector Size	1-1/16 in. Diameter
Ambient Temperature Rating	150F
Bulb Material	Glass with Glycerin Solution
Orifice Size	7/16 in.
Colour/Finish Name	White Painted
Specifications - UL Listed	Yes
Height	2-3/8 in.
Material	Die-Cast Brass 65-30 Frame
Pressure - Maximum	175 psi
End Connection 1	MNPT
Fitting Size 1	1/2 in.
