V3404 286 BRS 3/4 UPRT 11.2K ELO QR

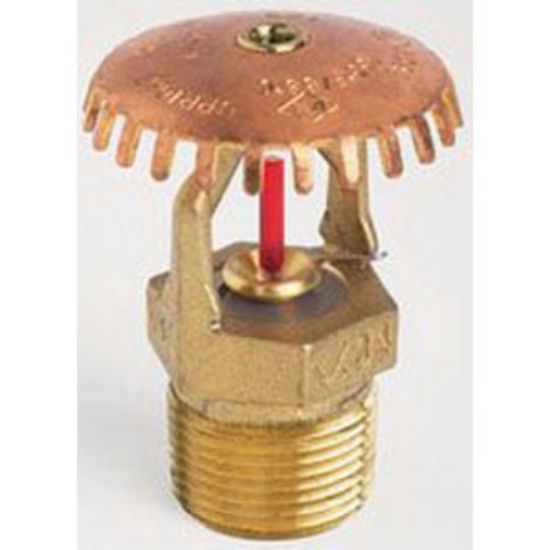

Victaulic V3404 K11.2 FireLock Quick Response (ELO) Upright 286 Degree F Brass
Manufacturer: Victaulic
$0.00
FireLock Standard Spray Sprinkler Head, Model: V3404, 2-1/2 in. Height, Die-Cast Brass Frame, Colour/Finish Name: Brass, End Connection 1: MNPT, Fitting Size 1: 3/4 in., 11.2 K-Factor, Maximum Temperature: 286F, Pressure - Maximum: 175 psi, Specifications - FM Approved: Yes, Specifications - UL Listed: Yes, 7 psi for NFPA Application, 10 psi for FM Global Application Working Pressure, Factory Hydrostatic Test: 100% at 500 psi, 225F Ambient Temperature, Global Origin, Material Specification: Deflector: UNS C22000, Hazard: All, V34 Recessed and Open End Wrench, 5/8 in. Orifice Size, Upright Deflector, Deflector Size: 1-13/16 in. Diameter, Quick Response, 5mm Blue Bulb Element, Glass with Glycerin Solution Bulb, Brass Deflector
Products specifications
products.specs.attributename products.specs.attributevalue
Wrench V34 Recessed and Open End
Working Pressure 7 psi for NFPA Application, 10 psi for FM Global Application
Response Type Quick
Material Specification Deflector: UNS C22000
Factory Hydrostatic Test 100% at 500 psi
Maximum Temperature 286F
K-Factor 11.2
Hazard All
Deflector Material Brass
Element 5mm Blue Bulb
Deflector Type Upright
Deflector Size 1-13/16 in. Diameter
Ambient Temperature Rating 225F
Bulb Material Glass with Glycerin Solution
Specifications - FM Approved Yes
Orifice Size 5/8 in.
Colour/Finish Name Brass
Specifications - UL Listed Yes
Height 2-1/2 in.
Material Die-Cast Brass Frame
Pressure - Maximum 175 psi
End Connection 1 MNPT
Fitting Size 1 3/4 in.
