V3411 155 WHI 3/4 PEND 11.2K ECLH STD

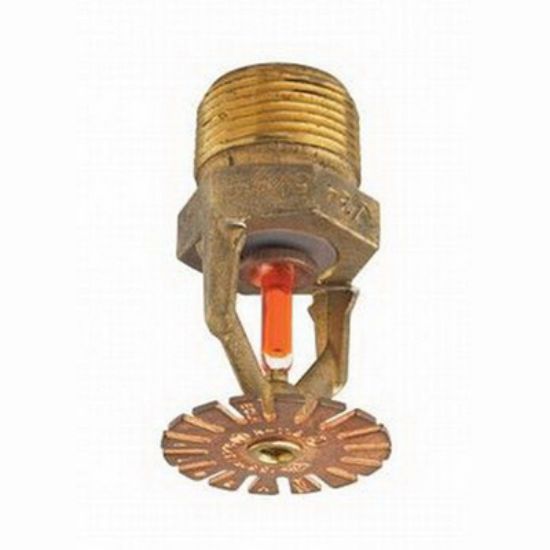

Victaulic K11.2 V3411 Extra Large Orifice Standard Response Pendent 155 Degree F / 68 Degree C, White RAL9010

Manufacturer: Victaulic

$0.00

Qty:

FireLock Extended Coverage Sprinkler Head, Model: V3411, 2-1/2 in. Height, Die-Cast Brass 65-30 Frame, Colour/Finish Name: WhPainted, End Connection 1: MNPT, Fitting Size 1: 3/4 in., 11.2 K-Factor, 155F Maximum - Temperature, Pressure - Maximum: 175 psi, Specifications - FM Approved: Yes, Specifications - UL Listed: Yes, 7 psi Working Pressure, 100% at 500 psi Factory Hydrostatic Test, 100F Ambient Temperature Rating, Deflector: UNS C51000 Material Specification, Light Hazard, V34 Recessed and Open End Wrench, 5/8 in. Orifice Size, Pendent Deflector Type, Standard Response Type, 5mm Red Bulb Element, Glass with Glycerin Solution Bulb Material, Bronze Deflector Material, Global Origin

Products specifications

products.specs.attributename	products.specs.attributevalue
Wrench	V34 Recessed and Open End
Working Pressure	7 psi
Response Type	Standard
Material Specification	Deflector: UNS C51000
Factory Hydrostatic Test	100% at 500 psi
Maximum Temperature	155F
K-Factor	11.2
Hazard	Light
Deflector Material	Bronze
Element	5mm Red Bulb
Deflector Type	Pendent
Ambient Temperature Rating	100F
Bulb Material	Glass with Glycerin Solution
Specifications - FM Approved	Yes
Orifice Size	5/8 in.
Colour/Finish Name	White Painted
Specifications - UL Listed	Yes
Height	2-1/2 in.
Material	Die-Cast Brass 65-30 Frame
Pressure - Maximum	175 psi
End Connection 1	MNPT
Fitting Size 1	3/4 in.
