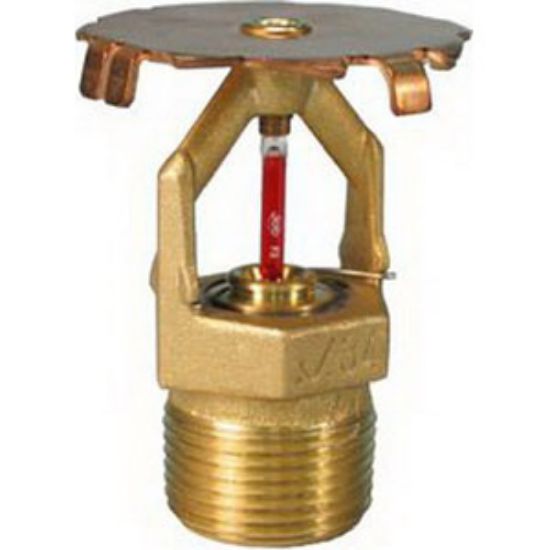

V3421 200 BRS 3/4 UPRT 14K ECOH STD

Victaulic K14.0 V3425 Extended Coverage Ordinary Hazard Standard Response Upright 200 Degree F / 93 Degree C, Plain Brass

Manufacturer: Victaulic

$0.00

Qty:

FireLock Extended Coverage Sprinkler Head, Model: V3425, 2-1/2 in. Height, Die-Cast Brass 65-30 Frame, Colour/Finish Name: Brass, End Connection 1: MNPT, Fitting Size 1: 3/4 in., 14 K-Factor, Maximum Temperature: 200F, Pressure - Maximum: 175 psi, Specifications - UL Listed: Yes, 7.8 psi Working Pressure, Factory Hydrostatic Test: 100% at 500 psi, 150F Ambient Temperature, Global Origin, Material Specification: Deflector: UNS C51000, Hazard: Ordinary, V34 Recessed and Open End Wrench, 3/4 in. Orifice Size, Upright Deflector, Deflector Size: 1-15/16 in. Diameter, Up to 400 sq-ft Coverage Area, Standard Response, 3mm Green Bulb Element, Glass with Glycerin Solution Bulb

Products specifications

products.specs.attributename	products.specs.attributevalue
Coverage Area	Up to 400 sq-ft
Wrench	V34 Recessed and Open End
Working Pressure	7.8 psi
Response Type	Standard
Material Specification	Deflector: UNS C51000
Factory Hydrostatic Test	100% at 500 psi
Maximum Temperature	200F
K-Factor	14
Hazard	Ordinary
Element	3mm Green Bulb
Deflector Type	Upright
Deflector Size	1-15/16 in. Diameter
Ambient Temperature Rating	150F
Bulb Material	Glass with Glycerin Solution
Orifice Size	3/4 in.
Colour/Finish Name	Brass
Specifications - UL Listed	Yes
Height	2-1/2 in.
Material	Die-Cast Brass 65-30 Frame
Pressure - Maximum	175 psi
End Connection 1	MNPT
Fitting Size 1	3/4 in.
