V3506 155 VC-250 1 SK PEND 38 K5.6 QR

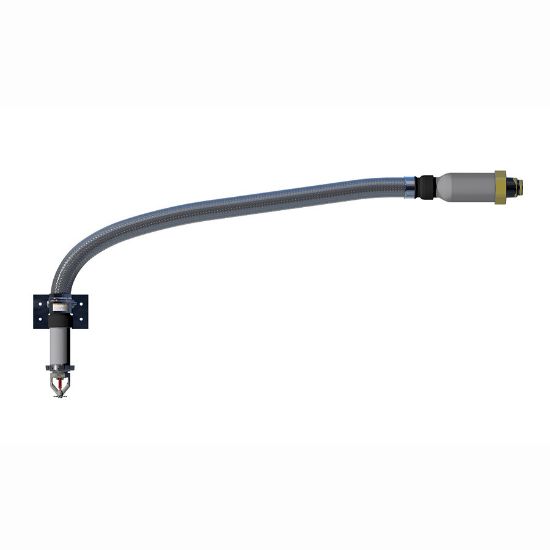

Victaulic VS1 38 in. H 155F Chrome Plated Pendent Quick Response Dry Sprinkler

Manufacturer: Victaulic

$0.00

Qty:

VicFlex Dry Sprinkler with Pipe, VS1 Series, Model: V3506, 38 in. Height, 300 Series Stainless Steel Flexible Hose, Colour/Finish Name: Chrome-Plated, Diameter: 2.2 in. Outside, End Connection 1: MNPT, Fitting Size 1: 1 in., 5.6 K-Factor, 155F Maximum - Temperature, Pressure - Maximum: 175 psi, Specifications - UL Listed: Yes, 7 psi Working Pressure, 100% at 500 psi Factory Hydrostatic Test, Light or Ordinary Hazard, 1/2 in. Orifice Size, Pendent Deflector Type, Quick Response Type, 3mm Bulb Element, Glass with Glycerin Solution Bulb Material, Brass Deflector Material, Global Origin

Products specifications

products.specs.attributename	products.specs.attributevalue
Working Pressure	7 psi
Response Type	Quick
Factory Hydrostatic Test	100% at 500 psi
Maximum Temperature	155F
K-Factor	5.6
Hazard	Light or Ordinary
Deflector Material	Brass
Element	3mm Bulb
Deflector Type	Pendent
Bulb Material	Glass with Glycerin Solution
Diameter	2.2 in. Outside
Orifice Size	1/2 in.
Colour/Finish Name	Chrome-Plated
Specifications - UL Listed	Yes
Height	38 in.
Material	300 Stainless Steel Flexible Hose
Pressure - Maximum	175 psi
End Connection 1	MNPT
Fitting Size 1	1 in.
