V3610 200 CHR 1 SK HSW 8 K5.6 QR

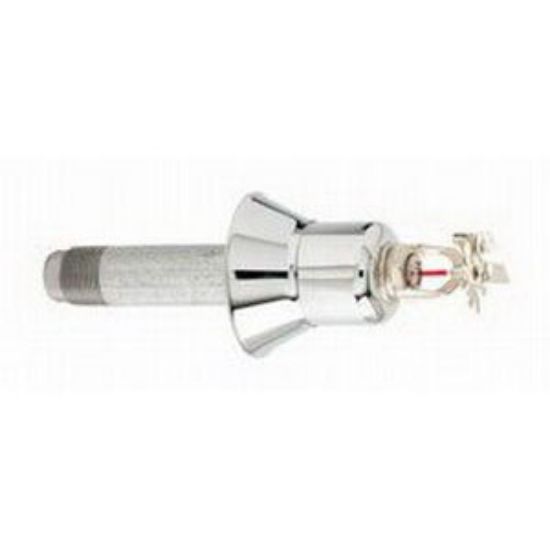

FireLock V3610 Chrome Plated Die-Cast Brass Frame Horizontal Sidewall Deflector Quick Response Dry Sprinkler Head, 1 in. MNPT, 5.6 K-Factor, 200F, 8 in. H

Manufacturer: Victaulic

$0.00

Qty:

FireLock Dry Sprinkler Head, Model: V3610, 8 in. Height, Die-Cast Brass Frame, Colour/Finish Name: Chrome-Plated, End Connection 1: MNPT, Fitting Size 1: 1 in., 5.6 K-Factor, Maximum Temperature: 200F, Pressure - Maximum: 175 psi, Specifications - FM Approved: Yes, Specifications - UL Listed: Yes, 7 psi Working Pressure, Factory Hydrostatic Test: 100% at 500 psi, 150F Ambient Temperature, Global Origin, Hazard: Light, V34 Recessed and Open End Wrench, 1/2 in. Orifice Size, Horizontal Sidewall Deflector, Quick Response, 3mm Green Bulb Element, Glass with Glycerin Solution Bulb

Products specifications

products.specs.attributename	products.specs.attributevalue
Wrench	V34 Recessed and Open End
Working Pressure	7 psi
Response Type	Quick
Factory Hydrostatic Test	100% at 500 psi
Maximum Temperature	200F
K-Factor	5.6
Hazard	Light
Element	3mm Green Bulb
Deflector Type	Horizontal Sidewall
Ambient Temperature Rating	150F
Bulb Material	Glass with Glycerin Solution
Specifications - FM Approved	Yes
Orifice Size	1/2 in.
Colour/Finish Name	Chrome-Plated
Specifications - UL Listed	Yes
Height	8 in.
Material	Die-Cast Brass Frame
Pressure - Maximum	175 psi
End Connection 1	MNPT
Fitting Size 1	1 in.
