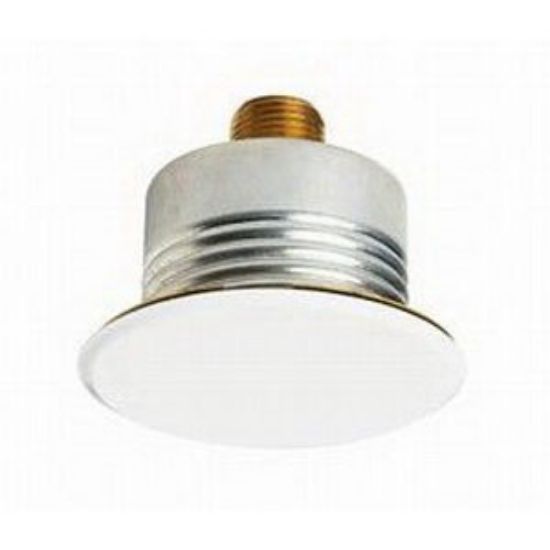

V3802 200 BRS 1/2 CONC PEND 5.6K QR

Victaulic V3802 K5.6 FireLock Quick Response Adjustable Concealed Standard Pendent 200 Degree F Brass

Manufacturer: Victaulic

$0.00

Qty:

FireLock Decorative Standard Spray Sprinkler Head, Model: V3802, Die-Cast Brass 65-30 Frame, Colour/Finish Name: Brass, End Connection 1: MNPT, Fitting Size 1: 1/2 in., 5.6 K-Factor, Maximum Temperature: 200F, Pressure - Maximum: 175 psi, Specifications - FM Approved: Yes, Specifications - UL Listed: Yes, 7 psi Working Pressure, Factory Hydrostatic Test: 100% at 500 psi, 150F Ambient Temperature, Global Origin, Material Specification: Deflector: UNS C22000, Hazard: Light or Ordinary, V38-4 or V38-5 Recessed Wrench, 1/2 in. Orifice Size, Adjustable Concealed Pendent Deflector, Quick Response, 3mm Green Bulb Element, Glass with Glycerin Solution Bulb, Bronze Deflector

Products specifications

products.specs.attributename	products.specs.attributevalue
Wrench	V38-4 or V38-5 Recessed
Working Pressure	7 psi
Response Type	Quick
Material Specification	Deflector: UNS C22000
Factory Hydrostatic Test	100% at 500 psi
Maximum Temperature	200F
K-Factor	5.6
Hazard	Light or Ordinary
Deflector Material	Bronze
Element	3mm Green Bulb
Deflector Type	Adjustable Concealed Pendent
Ambient Temperature Rating	150F
Bulb Material	Glass with Glycerin Solution
Specifications - FM Approved	Yes
Orifice Size	1/2 in.
Colour/Finish Name	Brass
Specifications - UL Listed	Yes
Material	Die-Cast Brass 65-30 Frame
Pressure - Maximum	175 psi
End Connection 1	MNPT
Fitting Size 1	1/2 in.
