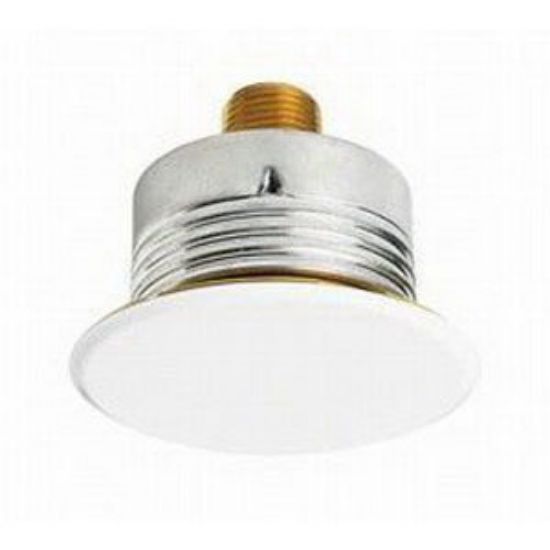

V3806 155 BRS 1/2 RES CONC PEND 5.6K QR

Victaulic K5.6 V3806 Quick Response Low Flow Adjustable Concealed Pendent 155 Degree F / 68 Degree C, Plain Brass, Large Room

Manufacturer: Victaulic

$0.00

Qty:

FireLock Low Flow Sprinkler Head, Model: V3806, Die-Cast Brass 65-30 Frame, Colour/Finish Name: Brass, End Connection 1: MNPT, Fitting Size 1: 1/2 in., 5.6 K-Factor, Maximum Temperature: 155F, Pressure - Maximum: 175 psi, Specifications - UL Listed: Yes, 8.2 psi Working Pressure, Factory Hydrostatic Test: 100% at 500 psi, 100F Ambient Temperature, Global Origin, Material Specification: Deflector: UNS C22000, Hazard: Residential, V38-4 Concealed Wrench, 1/2 in. Orifice Size, Adjustable Concealed Pendent Deflector, Up to 400 sq-ft Coverage Area, Quick Response, 3mm Red Bulb Element, Glass with Glycerin Solution Bulb, Bronze Deflector

Products specifications

products.specs.attributename	products.specs.attributevalue
Coverage Area	Up to 400 sq-ft
Wrench	V38-4 Concealed
Working Pressure	8.2 psi
Response Type	Quick
Material Specification	Deflector: UNS C22000
Factory Hydrostatic Test	100% at 500 psi
Maximum Temperature	155F
K-Factor	5.6
Hazard	Residential
Deflector Material	Bronze
Element	3mm Red Bulb
Deflector Type	Adjustable Concealed Pendent
Ambient Temperature Rating	100F
Bulb Material	Glass with Glycerin Solution
Orifice Size	1/2 in.
Colour/Finish Name	Brass
Specifications - UL Listed	Yes
Material	Die-Cast Brass 65-30 Frame
Pressure - Maximum	175 psi
End Connection 1	MNPT
Fitting Size 1	1/2 in.
