FZUR48OSY6

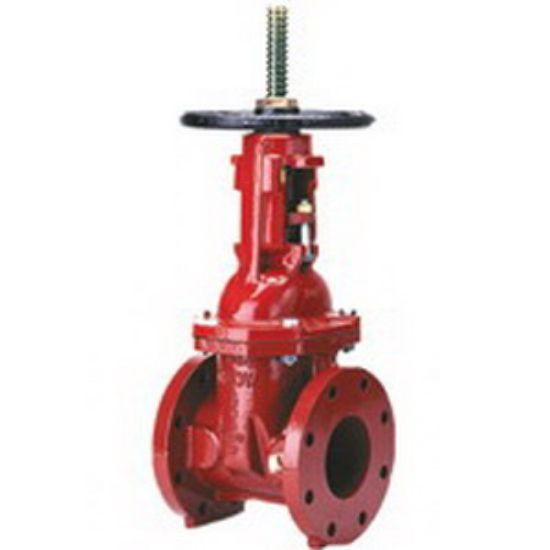

48OS&Y Fusion Bonded Epoxy Coated Lead Free Ductile Iron OSY Hand Wheel Resilient Wedge Gate Valve, 6 in., Flanged
Resilient Wedge Gate Valve, Model: 48OS&Y, 10-1/2 in. Length, Ductile Iron, End Connection 1: Flanged, Pressure - Maximum: 250 psi, Specifications - FM Approved: Yes, Specifications - UL Listed: Yes, End Connection 2: Flanged, Specifications - ASTM: ASTM A-536 Grade 65-45-12, Other Physical Dimensions: 12-1/2 in. Wheel Diameter, 11 in. Flanged Diameter, 30-1/2 in. Open x 24-1/4 in. Closed Inlet Centre to Top of Valve, 3/4 in. Bolt, Valve Operator: Hand Wheel, Valve Size: 6 in., Ductile Iron Handle, Maximum Temperature: 140F, Specifications - ASME: ASME B16.1, Lead Law Compliant: Yes, Specifications - NSF: NSF 372, Specifications - NSF Certified: Yes, Coating: Fusion Bonded Epoxy Coated, Specifications - AWWA: AWWA C-515, AWWA C-550, Valve Body Style: OSY, Number of Holes: 8-Flanged, Waterworks Application: Water
