GIAUG5038TFPDV1N2U

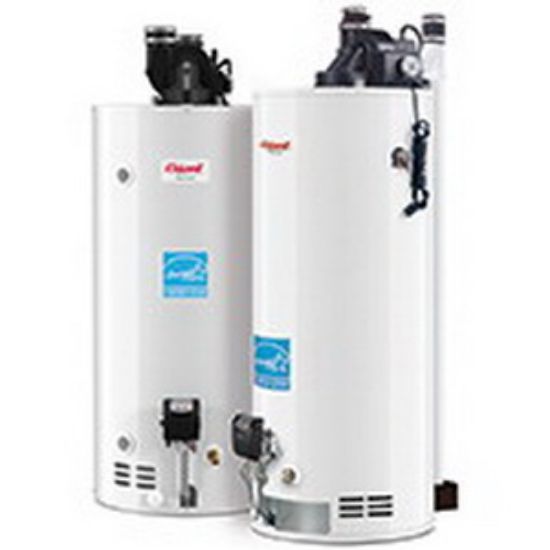

Giant UG50 High Performance Power Direct Vent Residential Natural Gas Water Heater, 40 gal, 38000 btu/hr, 71 gph

Manufacturer: Giant Industries

$0.00

Qty:

Power Direct Vent Residential Gas-Fired Water Heater, Model: UG50, 68-1/2 in. Height, BTU: 38000 btu/hr, 40 gal Capacity, Diameter: 22 in., End Connection 1: MNPT Water, FNPT Gas, 067 Energy Factor, Energy Star Compliant: Yes, 71 gph, 34.1 gal at 90F Temperature Rise Recovery Flow Rate, Fuel Type: Natural Gas, Yes Green Product, Silicon Nitride Ignition System, Lead Law Compliant: Yes, Pressure -

Products specifications

products.specs.attributename	products.specs.attributevalue
Height	68-1/2 po
BTU	38000 btu/hr
Capacity	40 gal
Diameter	22 in.
End Connection 1	MNPT Water, FNPT Gas
Energy Factor	067
Energy Star Compliant	Yes
First Hour Delivery	71 gph
Fuel Type	Natural Gas
Green Product	Yes
Ignition System	Silicon Nitride
Lead Law Compliant	Yes
Pressure - Maximum	150 psi Working, 300 psi Test
Specifications - ANSI	ANSI Z21.10.1
Specifications - CSA Certified	CSA 4.1
Supply Pipe Connection Size	3/4 in. MNPT Cold Water Inlet, 1/2 in. FNPT Gas Inlet
Vent Diameter	2 - 3 in.
Water Heater Type	High Performance
