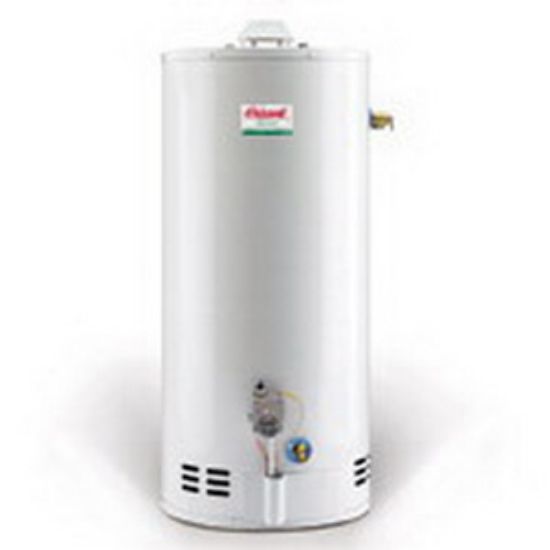

UG50-40LF-N2U NG FVIR WATER HEATER

Giant UG50 High Performance Atmospheric Vent Residential Natural Gas Water Heater, 50 gal, 40000 btu/hr, 86 gph

Manufacturer: Giant Industries

$0.00

Qty:

Atmospheric Vent Residential Gas-Fired Water Heater, Model: UG50, 51-1/2 in. Height, BTU: 40000 btu/hr, 50 gal Capacity, Diameter: 23-1/2 in., End Connection 1: MNPT Water, FNPT Gas, 0.61 Energy Factor, 86 gph, 42.6 gal at 90F Temperature Rise Recovery Flow Rate, Fuel Type: Natural Gas, Yes Green Product, Piezo Ignition System, Lead Law Compliant: Yes, Pressure - Maximum: 150 psi Working, 300 psi

Products specifications

products.specs.attributename	products.specs.attributevalue
Height	51-1/2 po
BTU	40000 btu/hr
Capacity	50 gal
Diameter	23-1/2 in.
End Connection 1	MNPT Water, FNPT Gas
Energy Factor	0.61
First Hour Delivery	86 gph
Fuel Type	Natural Gas
Green Product	Yes
Ignition System	Piezo
Lead Law Compliant	Yes
Pressure - Maximum	150 psi Working, 300 psi Test
Specifications - ANSI	ANSI Z21.10.1
Specifications - CSA Certified	CSA 4.1
Supply Pipe Connection Size	3/4 in. MNPT Cold Water Inlet and Hot Water Outlet, 1/2 in. FNPT Gas Inlet
Vent Diameter	4 in.
Water Heater Type	High Performance
