GIAUG6038MFPV2P2U

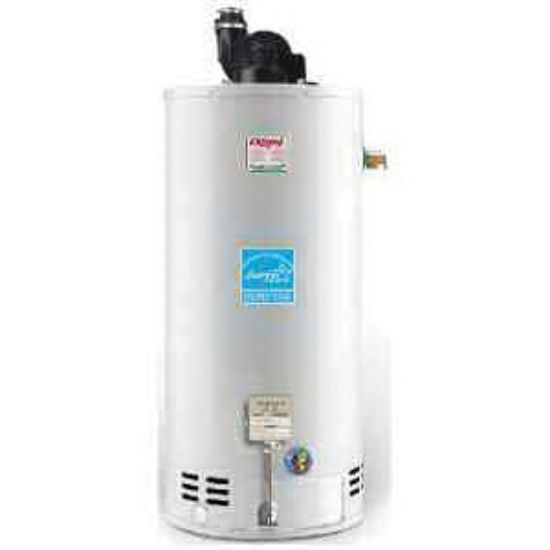

Giant UG60-38MFPV2-P2U Residential Power Vent Gas-Fired Water Heater, 60 gal, 38000 btu/hr

Manufacturer: Giant Industries

$0.00

Qty:

Residential Power Vent Gas-Fired Water Heater, 66-5/8 in. Height, BTU: 38000 btu/hr, 60 gal Capacity, Diameter: 23-1/2 in., End Connection 1: MNPT Water, FNPT Gas, 0.67 Energy Factor, Energy Star Compliant: Yes, Flow Rate: 40.9 gal at 90F Temperature Rise Recovery, Fuel Type: LP Gas, Green Product: Yes, Silicon Nitride Ignition System, Lead Law Compliant: Yes, Pressure - Maximum: 150 psi Working, 300 psi Test, Specifications - ANSI: ANSI Z21.10.1, Specifications - CSA Certified: C/US CSA 4.1, Supply Pipe Connection Size: 3/4 in. MNPT Cold Water Inlet, 1/2 in. FNPT Gas Inlet, 2 - 3 in. Vent Diameter

Products specifications

products.specs.attributename	products.specs.attributevalue
Height	66-5/8 po
BTU	38000 btu/hr
Capacity	60 gal
Diameter	23-1/2 in.
End Connection 1	MNPT Water, FNPT Gas
Energy Factor	0.67
Energy Star Compliant	Yes
Fuel Type	LP Gas
Green Product	Yes
Ignition System	Silicon Nitride
Lead Law Compliant	Yes
Pressure - Maximum	150 psi Working, 300 psi Test
Specifications - ANSI	ANSI Z21.10.1
Specifications - CSA Certified	C/US CSA 4.1
Supply Pipe Connection Size	3/4 in. MNPT Cold Water Inlet, 1/2 in. FNPT Gas Inlet
Vent Diameter	2 - 3 in.
