UG65-250N 54G 265MBTU NAT. W/H

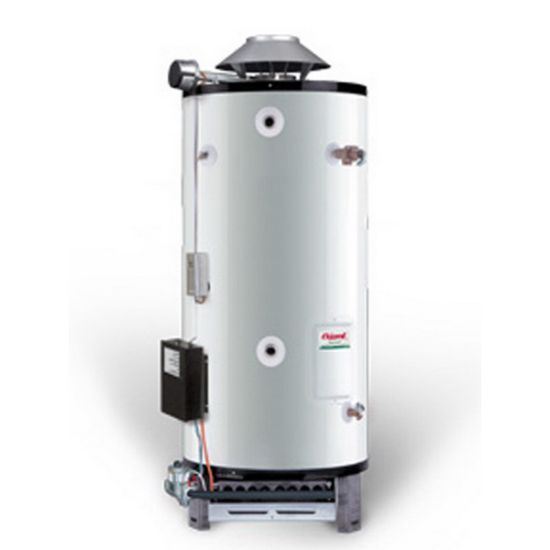

Giant UG65-250N Steel Commercial Atmospheric Vent Heavy-Duty Natural Gas Water Heater, 65 gal, 73.2kW, 250000 btu/hr

Manufacturer: Giant Industries

$0.00

Qty:

Commercial Atmospheric Vent Heavy-Duty Natural Gas Water Heater, 70-7/8 in. Height, Material: Steel, 250000 btu/hr BTU, 65 gal Capacity, Diameter: 26-1/2 in., End Connection 1: NPT, End Connection 2: NPT, Flow Rate: 236 gph at 100F Temperature Rise Recovery, Spark to Pilot Ignition System, Pressure - Maximum: 150 psi, Specifications - ANSI: ANSI Z21.10.3, Specifications - CSA Certified: CSA 4.3, Supply Pipe Connection Size: 1-1/2 in. Inlet/Outlet Water, 3/4 in. Relief and Drain Valve, 73.2kW Watts, Greater Than 80% Thermal Efficiency

Products specifications

products.specs.attributename	products.specs.attributevalue
Height	70-7/8 po
Material	Steel
BTU	250000 btu/hr
Capacity	65 gal
Diameter	26-1/2 in.
End Connection 1	NPT
End Connection 2	NPT
Ignition System	Spark to Pilot
Pressure - Maximum	150 psi
Specifications - ANSI	ANSI Z21.10.3
Specifications - CSA Certified	CSA 4.3
Supply Pipe Connection Size	1-1/2 in. Inlet/Outlet Water, 3/4 in. Relief and Drain Valve
Thermal Efficiency	Greater Than 80%
Watts	73.2kW
