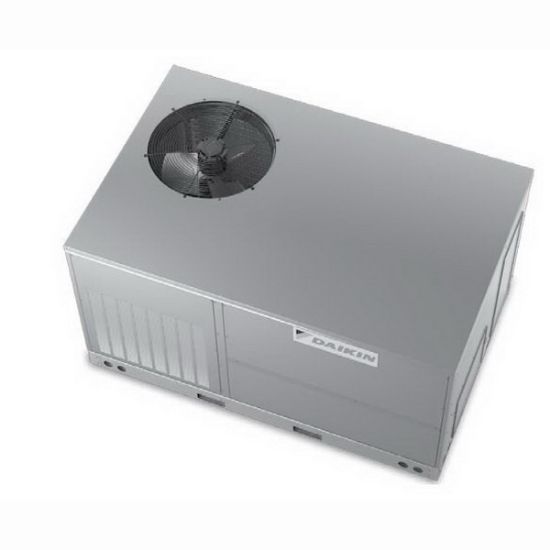

Picture of DCG0360903BXXX 3T RT HT PMP 90K 208/3

DCG0360903BXXX 3T RT HT PMP 90K 208/3

Goodman DCG0360903BXXX Galvanized Steel Commercial Packed Gas Heat Unit, 80% AFUE, 3 Tonnes, 90000 btu/hr, 208 - 230 VAC at 60Hz, 3 PH, 18A
Manufacturer: Goodman
$0.00
Commercial Packed Gas Heat Unit, DGC Series, 73.945 in. Width, 48.196 in. Height, Galvanized Steel, 80% AFUE, AMP: 18A, BTU: 90000 btu/hr, BTU Cooling Rating: 34600 btu/hr Total, 25600 btu/hr Sensible, 92000 btu/hr High, 74000 btu/hr Low BTU Heat Rating, Depth: 38.84 in., 11 EER, 1200 cfm Maximum, Phase: 3 PH, R-410A Refrigerant, 3 Tonnes, 208 - 230 VAC Volts, 60Hz Frequency Rating, 78 dBA Decibel Rating, Fan Rating: 1.4A, 1/4 hp, 1090 RPM, 17 sq-ft Face Area, 24 Fins/in., Coil Rating: 1 hp, 1725 RPM, 5.4 sq-ft Face Area, 16 Fins/in., Connection Type: 3/4 in. Drain, Temperature Rating: 40 - 70F/30 - 60F Rise
Products specifications
products.specs.attributename products.specs.attributevalue
Width 73.945 in.
Height 48.196 in.
Material Galvanized Steel
AFUE 80%
AMP 18A
BTU 90000 btu/hr
BTU Cooling Rating 34600 btu/hr Total, 25600 btu/hr Sensible
BTU Heat Rating 92000 btu/hr High, 74000 btu/hr Low
CFM 1200 cfm
Coil Rating 1 hp, 1725 RPM, 5.4 sq-ft Face Area, 16 Fins/in.
Connection Type 3/4 in. Drain
Decibel Rating 78 dBA
Depth 38.84 in.
EER 11
Fan Rating 1.4A, 1/4 hp, 1090 RPM, 17 sq-ft Face Area, 24 Fins/in.
Frequency Rating 60Hz
Phase 3 PH
Refrigerant R-410A
Temperature Rating 40 - 70F/30 - 60F Rise
Tonnage 3 Tonnes
Volts 208 - 230 VAC
