GOOZP16K5EPFV830

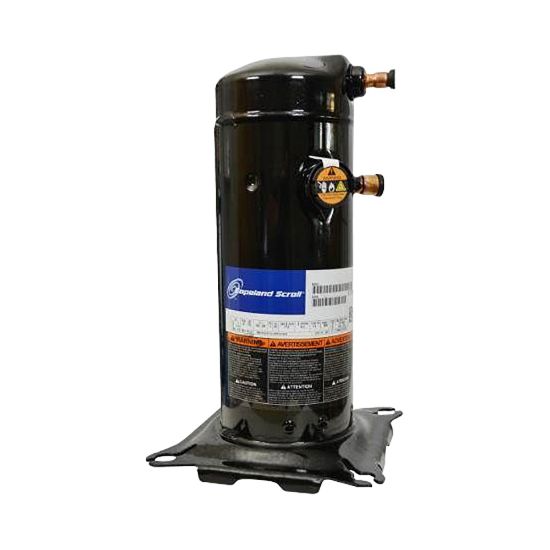

Copeland ZP16K5E-PFV-830 Hermetic Scroll Compressor, 15500 btu/hr, R-410A, 208 - 230 VAC at 60Hz, 1 PH, 7.3A

Manufacturer: Goodman

$0.00

Qty:

Hermetic Scroll Compressor, ZP Series, 9.56 in. Length, 9.56 in. Width, 15.27 in. Height, AMP: 7.3A, 15500 btu/hr BTU, Phase: 1 PH, R-410A Refrigerant, 208 - 230 VAC Volts, 60Hz Frequency Rating, 228 - 264 lbs/hr Mass Flow, Suction Line (OD): 3/4 in., Locked Rotor AMP: 48A, 66 - 71 dBA Decibel Rating, 9.3 - 20 EER, Diameter: 5-1/2 in., Liquid Line (OD): 1/2 in., 7-1/2 x 7-1/2 in. Base, 1660W Watts, RPM: 3500 RPM, Temperature Rating: 45 - 50F Evaporator, 100 - 130F Condensing, 65 - 70F Return Gas, 85 - 115F Liquid

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	9.56 in.
Width	9.56 in.
Height	15.27 in.
AMP	7.3A
Base Size	7-1/2 x 7-1/2 in.
BTU	15500 btu/hr
Decibel Rating	66 - 71 dBA
Diameter	5-1/2 in.
EER	9.3 - 20
Frequency Rating	60Hz
Liquid Line (OD)	1/2 in.
Locked Rotor AMP	48A
Mass Flow	228 - 264 lbs/hr
Phase	1 PH
Refrigerant	R-410A
RPM	3500 RPM
Suction Line (OD)	3/4 in.
Temperature Rating	45 - 50F Evaporator, 100 - 130F Condensing, 65 - 70F Return Gas, 85 - 115F Liquid
Volts	208 - 230 VAC
Watts	1660W
