GRCG804520

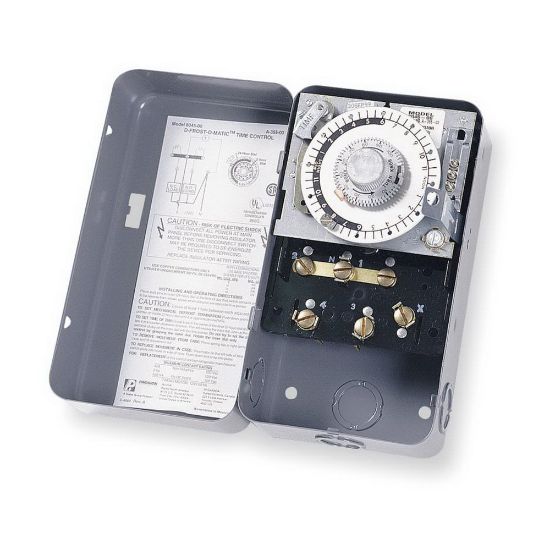

G8045-20 Mechanical Defrost Timer, 208 - 240 VAC at 60Hz, 40A Resistive Load at 120 - 240 VAC, 60 Hz, (1) Normally Open, (1) Normally Closed, -40 to 104F

Manufacturer: Intermatic

$0.00

Qty:

Mechanical Defrost Timer, G8000 Series, 5 in. Length, 3 in. Width, 7-3/4 in. Height, Material: Heavy Steel Enclosure, AMP: 40A Resistive Load at 120 - 240 VAC, 60 Hz, Specifications - NEMA: NEMA 1, Specifications - UL Listed: Yes, 208 - 240 VAC at 60Hz Volts, (1) Normally Open, (1) Normally Closed Configuration, Temperature Range: -40 to 104F, Maximum On/Off Cycle: 6, Horsepower: 2 hp at 120 - 240 VAC, 60Hz, Pilot Duty Rating: 1000 VA

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	5 in.
Width	3 in.
Height	7-3/4 po
Material	Heavy Steel Enclosure
AMP	40A Resistive Load at 120 - 240 VAC, 60 Hz
Configuration	(1) Normally Open, (1) Normally Closed
Horsepower	2 hp at 120 - 240 VAC, 60Hz
Pilot Duty Rating	1000 VA
Specifications - NEMA	NEMA 1
Specifications - UL Listed	Yes
Temperature Range	-40 to 104F
Volts	208 - 240 VAC at 60Hz
