52722370 UP43-75BF 115V BRZ

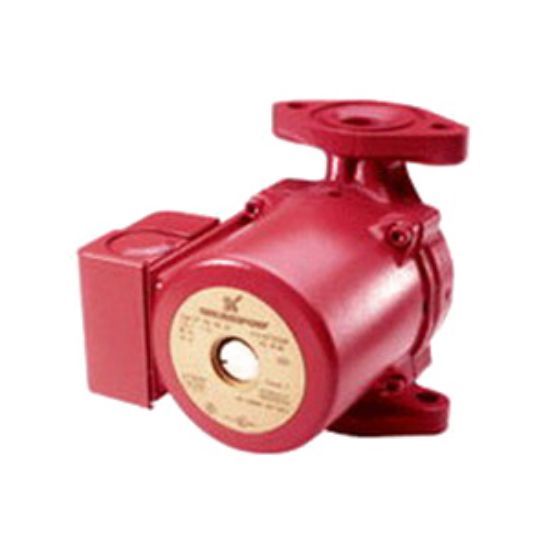

Grundfos UP 43-75 BF Lead-Free Bronze 1-Speed Large Stator Up Circulating Pump, 115 VAC at 60Hz, 1 PH, 0.16 hp

Manufacturer: Grundfos

$0.00

Qty:

Large Stator Up Circulating Pump, UP Series, Model: UP 43-75 BF, 6.69 in. Length, 8-1/2 in. Height, Bronze, AMP: 2.15A (Speed 3), End Connection 1: Flanged, End Connection 2: Flanged, Fitting Size 1: 1-1/2 in., Fitting Size 2: 1-1/2 in., 40.9 gpm US Flow Rate, Horsepower: 0.16 hp, PES ComposImpeller, Lead Law Compliant: Yes, 24.94 ft. Maximum Feet of Head, 36 - 230F Maximum - Temperature, Phase: 1 PH, Hardwired Power Source, Pressure - Maximum: 145 psi, 10 Pump Stage, 3150 RPM, Specifications - UL Listed: Yes, 115 VAC VAC at 60 Hz, 1 Number of Speeds, 215W Power Rating, Aluminum Oxide Ceramic Shaft Material, Aluminum Oxide Ceramic Radial, Carbon Thrust Bearing Material, 104F Ambient Temperature Environmental Conditions, Number of Poles: 2, Capacitor: 10mfd, Insulation Class: F, Port-to-Port Length: 8-1/2 in. Additional Specifications

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	6.69 in.
Height	8-1/2 po
Material	Bronze
AMP	2.15A (Speed 3)
Bearing Material	Aluminum Oxide Ceramic Radial, Carbon Thrust
End Connection 1	Flanged
End Connection 2	Flanged
Environmental Conditions	104F Ambient Temperature
Fitting Size 1	1-1/2 in.
Fitting Size 2	1-1/2 in.
Horsepower	0.16 hp
Impeller	PES Composite
Lead Law Compliant	Yes
Maximum Feet of Head	24.94 ft.
Maximum Temperature	36 - 230F
Number of Poles	2
Phase	1 PH
Power Rating	215W
Power Source	Hardwired
Pressure - Maximum	145 psi
Pump Stage	10
RPM	3150 RPM
Shaft Material	Aluminum Oxide Ceramic
Specifications - UL Listed	Yes
VAC at 60 Hz	115 VAC
