C++ 52722373 UP43-75F 115V

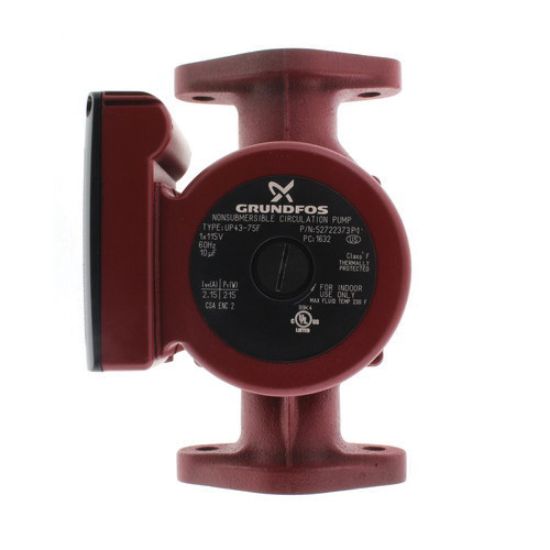

Grundfos UP 43-75F Cast Iron Closed System Large Stator Circulator Pump, 115V at 60Hz, 1 PH, 1/6 hp

Manufacturer: Grundfos

$0.00

Qty:

Closed System Large Stator Circulator Pump, UP Series, Model: UP 43-75F, 6.69 in. Width, 8-1/2 in. Height, Material: Cast Iron, AMP: 2.15A, End Connection 1: 2-Bolt Flanged, Flow Rate: 0 - 41 gpm, Horsepower: 1/6 hp, 75 dm Maximum Head, Maximum Temperature: 230F Liquid, Phase: 1 PH, Pressure - Maximum: 145 psi, Pump Body Material: Cast Iron, 2-Pole Pump Motor, Specifications - UL Listed: Yes, 115V at 60 Hz, 60Hz Frequency Rating, Aluminum Oxide Ceramic Shaft, Aluminum Oxide Ceramic Bearing, 215W Power Rating, PES ComposImpeller, Port-To-Port Length: 8-1/2 in., Capacitance: 10mfd/180V

Products specifications

products.specs.attributename	products.specs.attributevalue
Width	6.69 in.
Height	8-1/2 po
Material	Cast Iron
AMP	2.15A
Bearing Material	Aluminum Oxide Ceramic
Capacitance	10mfd/180V
End Connection 1	2-Bolt Flanged
Frequency Rating	60Hz
Horsepower	1/6 hp
Impeller Material	PES Composite
Maximum Feet of Head	75 dm
Maximum Temperature	230F Liquid
Phase	1 PH
Port-To-Port Length	8-1/2 in.
Power Rating	215W
Pressure - Maximum	145 psi
Pump Body Material	Cast Iron
Pump Motor Type	2-Pole
Shaft Material	Aluminum Oxide Ceramic
Specifications - UL Listed	Yes
VAC at 60 Hz	115V
