52722513 UPS26-99FC 230V 3 SPD

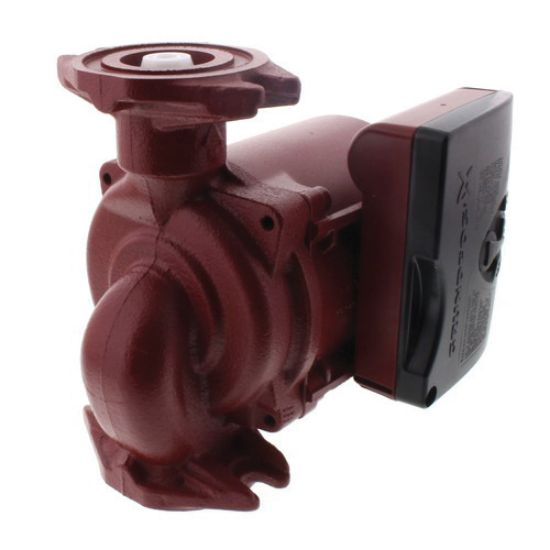

Grundfos UPS 26-99 FC Cast Iron 3-Speed Large Stator Up Circulating Pump, 230 VAC at 60Hz, 1 PH, 0.16 hp

Manufacturer: Grundfos

$0.00

Qty:

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	6 in.
Height	6-1/2 po
Material	Cast Iron
AMP	0.7A (Speed 1), 0.8A (Speed 2), 0.9A (Speed 3)
Bearing Material	Aluminum Oxide Ceramic Radial, Carbon Thrust
End Connection 1	Flanged
End Connection 2	Flanged
Environmental Conditions	40C Ambient Temperature
Fitting Size 1	3/4, 1, 1-1/4, 1-1/2 in.
Fitting Size 2	3/4, 1, 1-1/4, 1-1/2 in.
Horsepower	0.16 hp
Impeller	PES Composite
Maximum Feet of Head	28.87 ft.
Maximum Temperature	36 - 230F
Number of Poles	2
Phase	1 PH
Power Rating	196W
Power Source	Hardwired
Pressure - Maximum	145 psi
Pump Stage	10
RPM	3380 RPM
Shaft Material	Aluminum Oxide Ceramic
Specifications - UL Listed	Yes
VAC at 60 Hz	230 VAC
