52722557 UPS50-44F 115V 3SPD

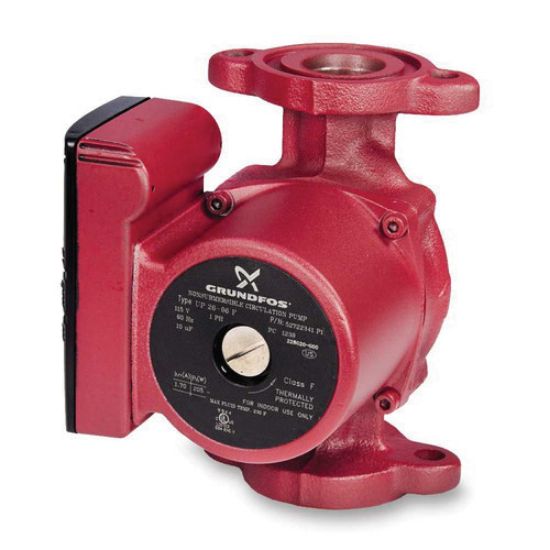

Grundfos UPS 50-44 F Cast Iron 3-Speed Large Stator Up Circulating Pump, 115 VAC at 60Hz, 1 PH, 0.16 hp

Manufacturer: Grundfos

$0.00

Qty:

Large Stator Up Circulating Pump, UP Series, Model: UPS 50-44 F, 7-1/2 in. Length, 8-1/2 in. Height, Cast Iron, AMP: 1.7A (Speed 3), End Connection 1: Flanged, End Connection 2: Flanged, Fitting Size 1: 2 in., Fitting Size 2: 2 in., 65 gpm US Flow Rate, Horsepower: 0.16 hp, PES ComposImpeller, 14.43 ft. Maximum Feet of Head, 32 - 230F Maximum - Temperature, Phase: 1 PH, Hardwired Power Source, Pressure - Maximum: 145 psi, 10 Pump Stage, Specifications - ASTM: ASTM 30 B, Specifications - UL Listed: Yes, 115 VAC VAC at 60 Hz, 3 Number of Speeds, 194W Power Rating, Aluminum Oxide Ceramic Shaft Material, Aluminum Oxide Ceramic Radial, Carbon Thrust Bearing Material, 40C Ambient Temperature Environmental Conditions, Number of Poles: 2, Capacitor: 20mfd, Insulation Class: F, Port-to-Port Length: 216mm Additional Specifications

Products specifications

products.specs.attributename	products.specs.attributevalue
Length	7-1/2 in.
Height	8-1/2 po
Material	Cast Iron
AMP	1.7A (Speed 3)
Bearing Material	Aluminum Oxide Ceramic Radial, Carbon Thrust
End Connection 1	Flanged
End Connection 2	Flanged
Environmental Conditions	40C Ambient Temperature
Fitting Size 1	2 in.
Fitting Size 2	2 in.
Horsepower	0.16 hp
Impeller	PES Composite
Maximum Feet of Head	14.43 ft.
Maximum Temperature	32 - 230F
Number of Poles	2
Phase	1 PH
Power Rating	194W
Power Source	Hardwired
Pressure - Maximum	145 psi
Pump Stage	10
Shaft Material	Aluminum Oxide Ceramic
Specifications - UL Listed	Yes
VAC at 60 Hz	115 VAC
